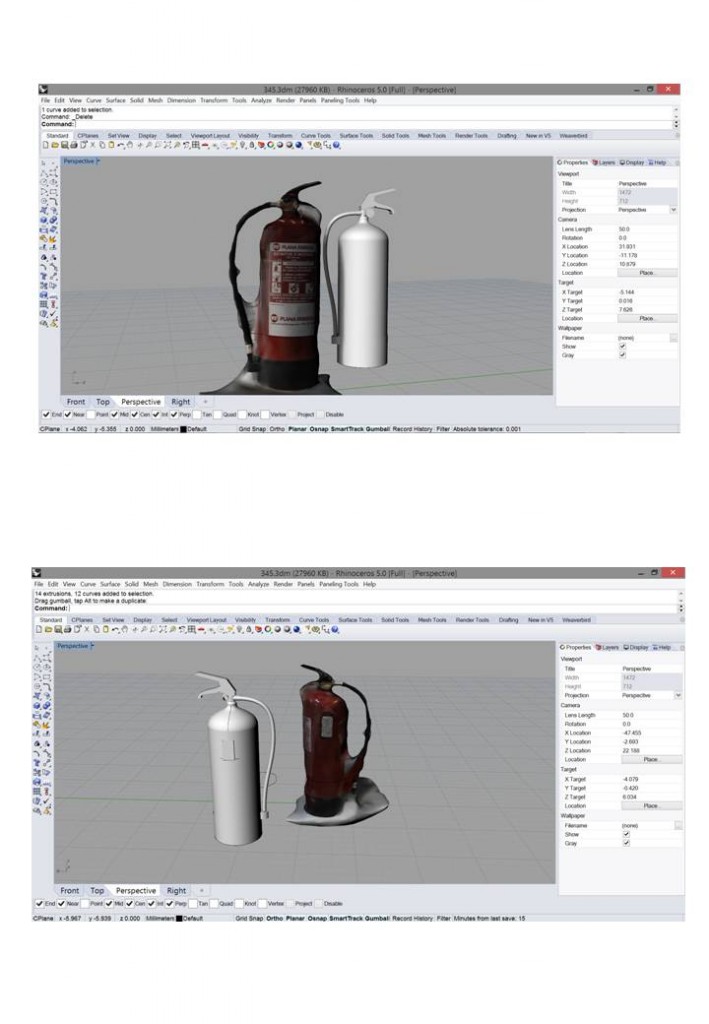

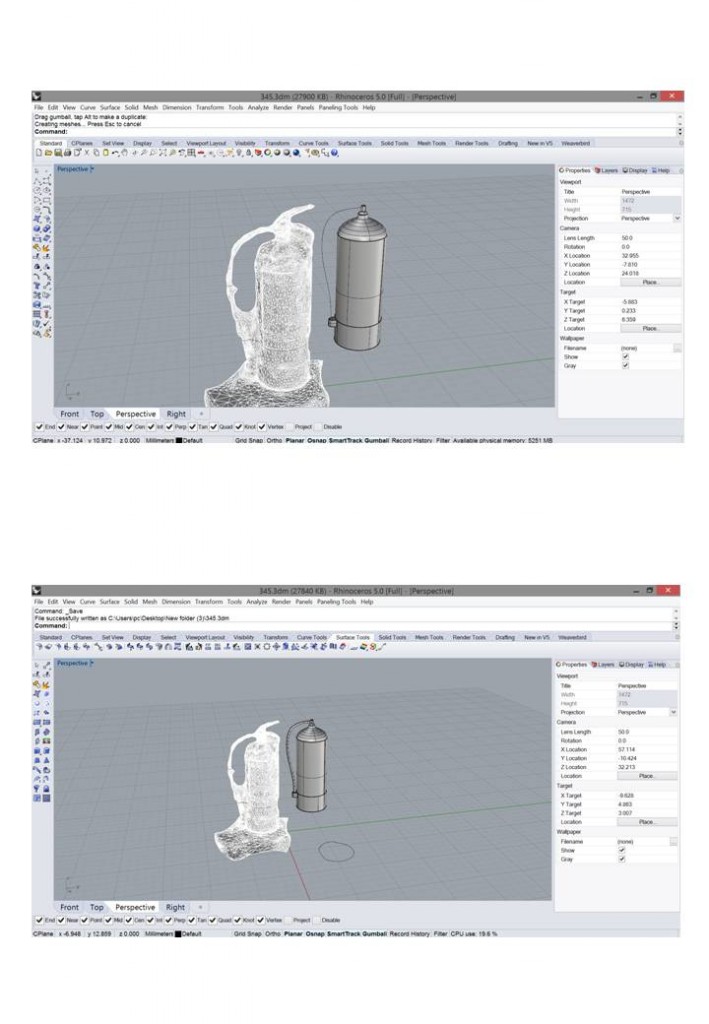

There are many ways to model the real world.  Increasingly, we are moving away from attempting to model real world objects based on measuring, describing, and drawing and rather are looking for ways to digitize the object directly.  This can be done in a multitude of ways, including laser scanning, time of flight scanning, and photogrammetry. For this exercise we will use photogrammetry to digitize a real world object and use that as a basis for modelling a clean model in Rhino.

http://www.rhino3d.com/

Here, I am showing Digitizing  process  of  Fire Extinguisher after taking 360 degree photographs of it in Autodesk 123D CATCH step by step!



123D Catch example

123D Catch example - naitik shah

123D Catch example - naitik shah

123D Catch example - naitik shah

123D Catch example - naitik shah

123D Catch example - naitik shah

123D Catch example - naitik shah

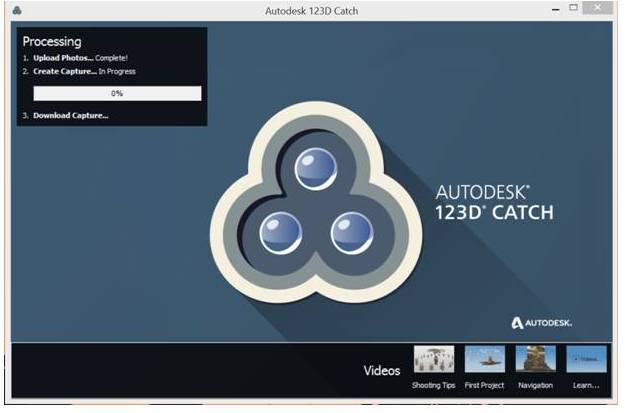

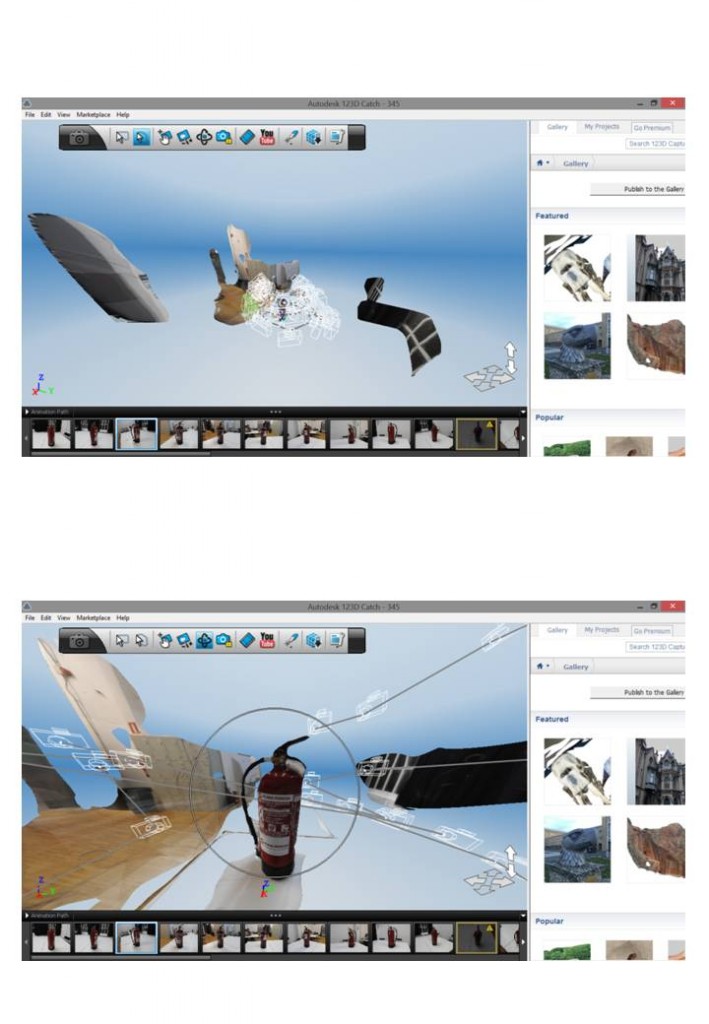

 Autodesk’s 123D Catch software which aids in stitching the images together and creating a 3d model.



Digital Tools – MAA 2015-2016 Term 1

Student : Naitik Shah



Instructor: Luis E. Fraguada

Assistant: Rodrigo Aguirre
