AFTER GAUDÍ: FROM COMPUTATION TO COMPOSITION
HYPERBOLIC PERFORATIONS
Seminar Faculty: Mark Burry & Rodrigo Aguirre
Faculty Assistant: Ashkan Foroughi
Credits: Mark Burry
Thinking beyond the environmental crassness of the commercial buildings’ typical floor to ceiling sheets of glass, external walls can be crafted to be fundamental climate modifiers that they are, optimised to separate the interior realm from the weather outside. Depending on climate, geography, and context, however, external walls present many conundrums, dilemmas, and paradoxes to the designer. In a warm climate, for example, larger perforations to the wall aim to bring as much light as possible into the interior yet they ought to be made small in order to limit heat gain. In cooler climates, sculpted window openings might need to act as light scoops in winter, and light shades in summer. Using appropriate geometry, wall openings can be styled to be both solar scoops and solar shades, or both depending on sun position and time of day.

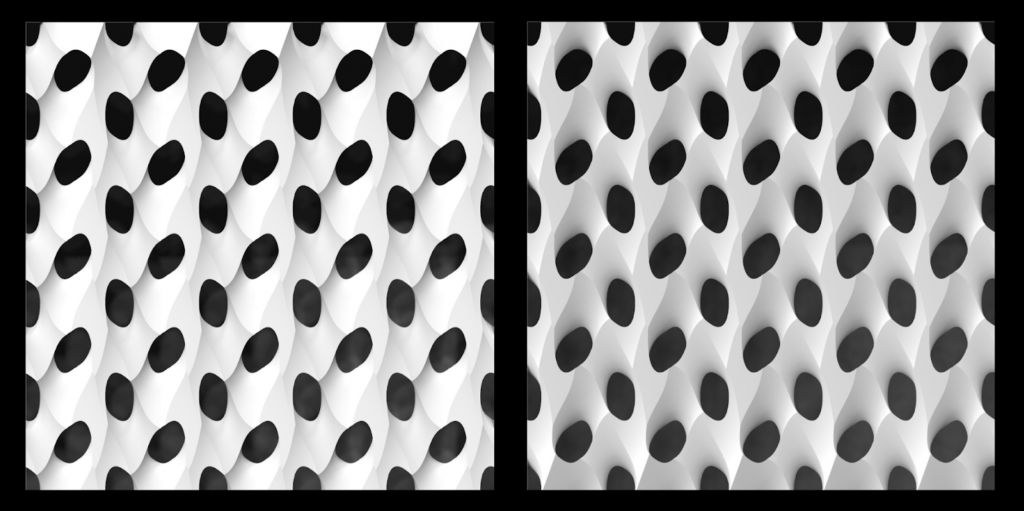

Architect Antoni Gaudí understood all this, and in his final work for the Sagrada Família Basilica, he introduced the hyperboloid of revolution (of one sheet) as his principal crafting tool to sculpt window openings for all the basilica’s walls: sculpted perforations. Each hyperboloid has 9 parametric variables allowing each geometry to be configured infinitely and therefore rendering each as unique with regard to its relationship with its neighbours. Tweaking just a single variable can have a profound effect on the sculpted outcome; tweaking all 9 offers unprecedented possibilities for the creative designer motivated by the beauty of light being artistically guided to illuminate the interior while being committed to providing optimal environmental performance. The world has been slow to take-up Gaudí’s lessons and this seminar aims to pick-up where Gaudí left off.
Throughout this course, participants will be introduced to the subtleties of Gaudi’s parametric design and reveal the richness of his use of hyperbolic geometry. Using the provided digital workbench, participants will develop sculpting tools to sculpt a building facade and at the same time adapting his hands-on techniques to experiment with intersecting hyperboloids. Furthermore, an additional layer of optimization will be introduced and adapted to craft the facade parametrically with maximum environmental performance criteria to fill an interior with sufficient light while illuminating it with the beauty and subtlety of the Sagrada Familia Basilica. In the end, a 3d printed big scale version of the final design will serve as a medium to test the effectiveness of simulation software in terms of environmental performance and aesthetic outcome.
Learning Objectives
At course completion the student will:
- Understand lesser-known but crucially innovative aspects of Gaudí’s design approach applicable for our time.
- Experience working with geometries that have 9 degrees of freedom (parametric variables) with an aim of establishing how less can lead to more.
- Explore the role of the architect to adopt design strategies more familiar to the sculptor.
- Compare and contrast physical and digital representations of design intentions, especially with regard for planned-for environmental performance.
