ICD-ITKE Research Pavilion 2012











ANIMATION





Elevation

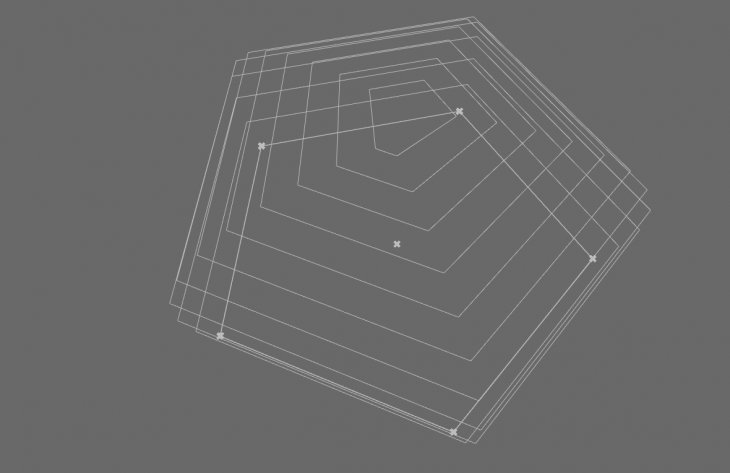

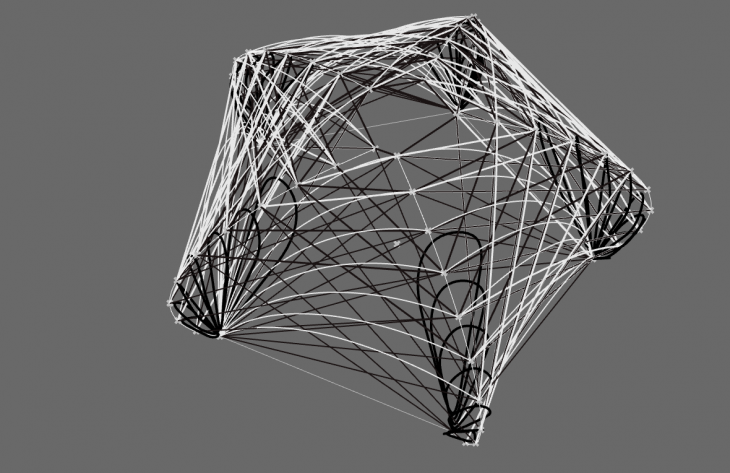

Form Finding



























pseudo code

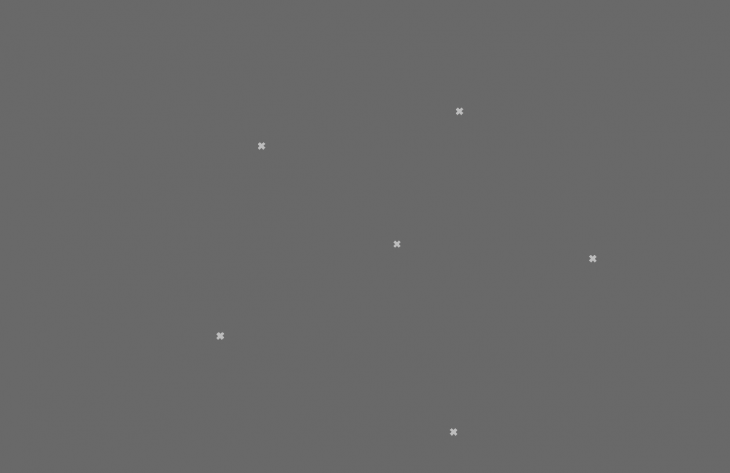

1- First creating the centre of the pavilion in order to form the five-sided polygon.

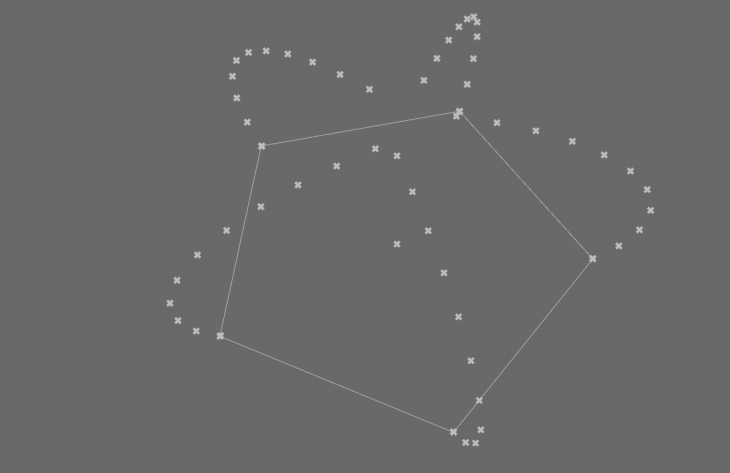

2- dividing the polygon curve to five points.

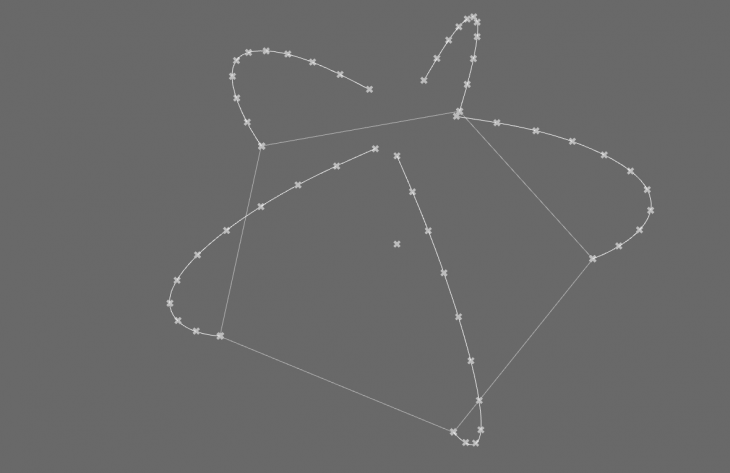

3-forming the arches from the divided points for each intersected edges.

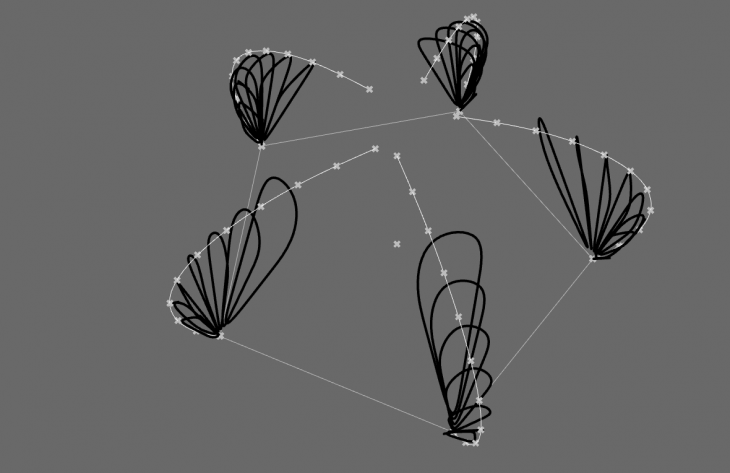

4- dividing and manipulating the divided arches to 10 points through the indexes , and items .

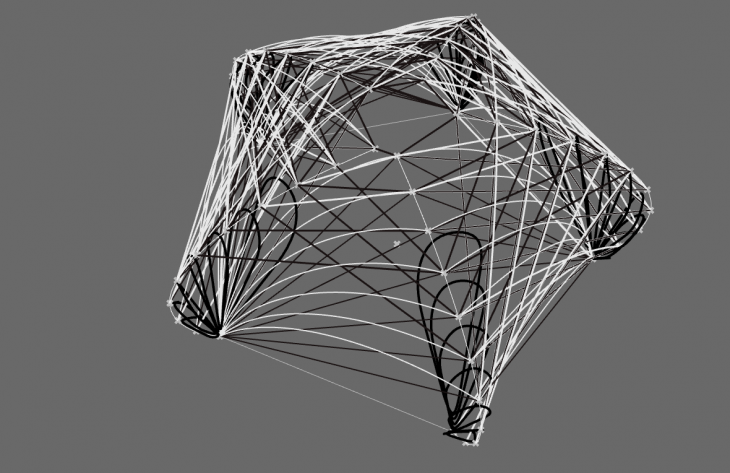

5-The webs of lines were created according to specific relations between each point illustrated through the diagrams.

6- The “Cullindexes”, and” list of item” components are the basic components in order
to create the lines connections, and directions.

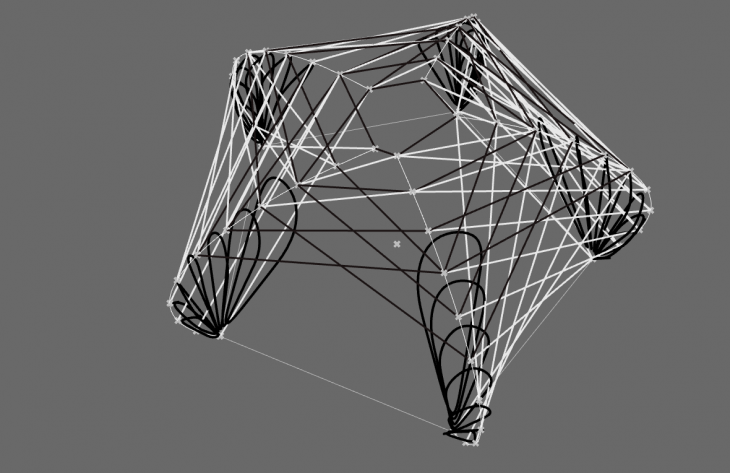

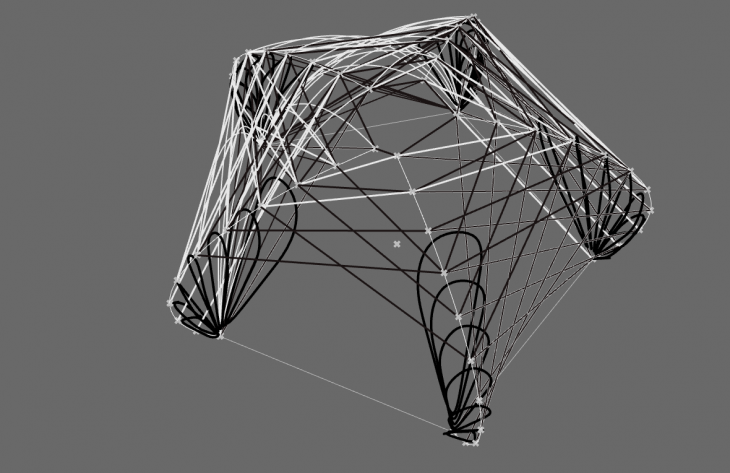

7-After forming the shape of the pavilion the animation was based on the process of forming for each point, lines, and surface.
