Bukit Pantai Residence

https://www.archdaily.com/781092/bukit-pantai-residence-oozn

About the Structure

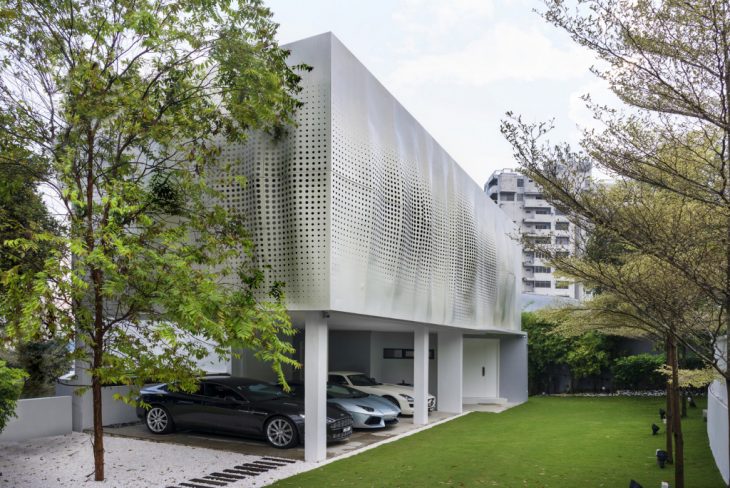

Bukit Pantai Residence is a residential structure based in Kuala Lumpur hillside. The façade consists of aluminum sheets that have been molded to form a ripple effect and circular punctures made for right amount of sunlight to enter. As the weather in the location is warm, these circular perforations help in creating shade and ventilated spaces.

The combination of materials, form, reflectivity and landscape combine to create the impression that the pavilion is floating above the landscape. The external lighting design further enhances this effect at night time. The panels were fabricated in a specialist Guangzhou workshop. The first stage in the process handcrafts clay molds, based on the architect’s 3D model, before using a pneumatic press to form 2.5mm aluminum sheets to the geometry of the mold. The pressed panels are then perforated and powder coated before shipping to site for installation.

Fabrication Process

The façade was fabricated using the CNC Milling machine. CNC Milling takes points as the data to mill the base material. the process that goes in making this design on the CNC Milling includes-

  1. Choosing right material to work on – MDF is the best for CNC
  2. Horizontal Roughing by 10mm Upcut Mill
  3. Parallel Finishing by 12mm Ball Mill
  4. Hole Profiling by 4mm Upcut Mill
  5. Axis Pocketing by 14mm Vee Mill

Understanding the process of fabricating

Production Data

Horizontal Roughing – UpCut Mill

Diameter: 10 mm

Spindle Speed: 10000 rpm

Cut Direction: upcut

Stepdown Control (dZ): 50%

Stepover Distance: 40%

Total mill time : 8.08 min

Parallel Finishing – Ball Mill

Diameter: 12 mm

Spindle Speed: 10000 rpm

Cut Direction: mixed

Stepover Distance: 25%

Total mill time : 15.32 min

Hole Profiling – UpCut Mill

Diameter: 4 mm

Spindle Speed: 10000 rpm

Cut Direction: upcut

Hole Diameter: 25.4 mm

Hole Depth: 14 mm

Total mill time : 43.87 min

Axis Pocketing – Vee Mill

Diameter: 19 mm

Spindle Speed: 10000 rpm

Cut Direction: mixed

Stepover Distance: 25%

Cut Depth control: 2 mm

Total mill time : 3.89 min

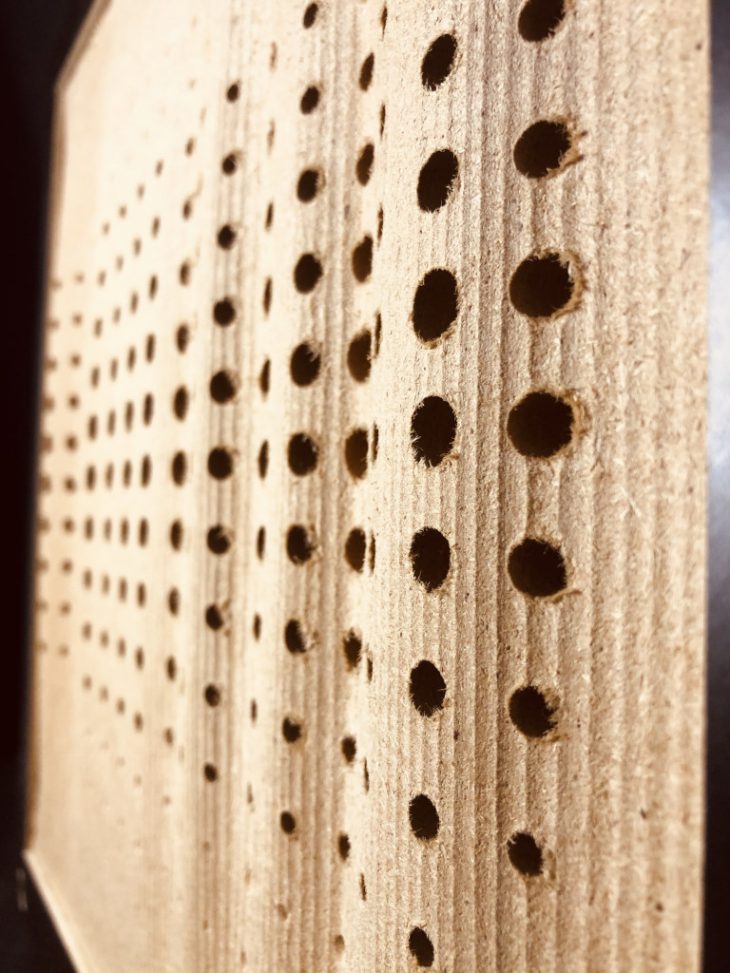

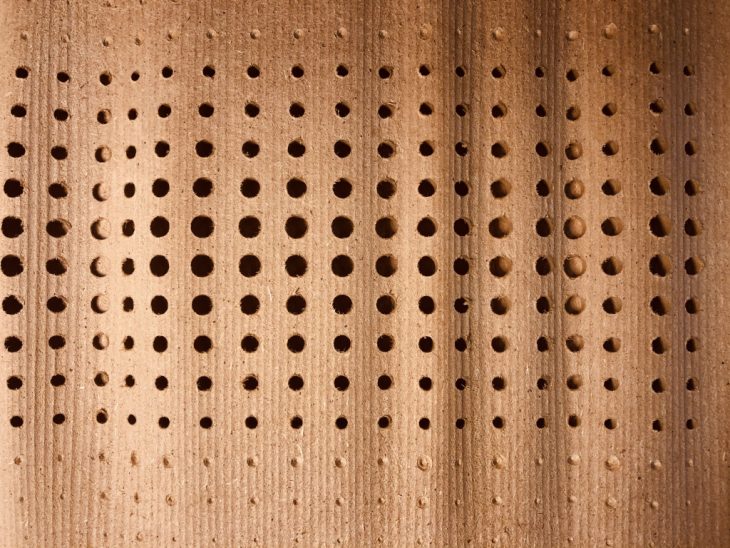

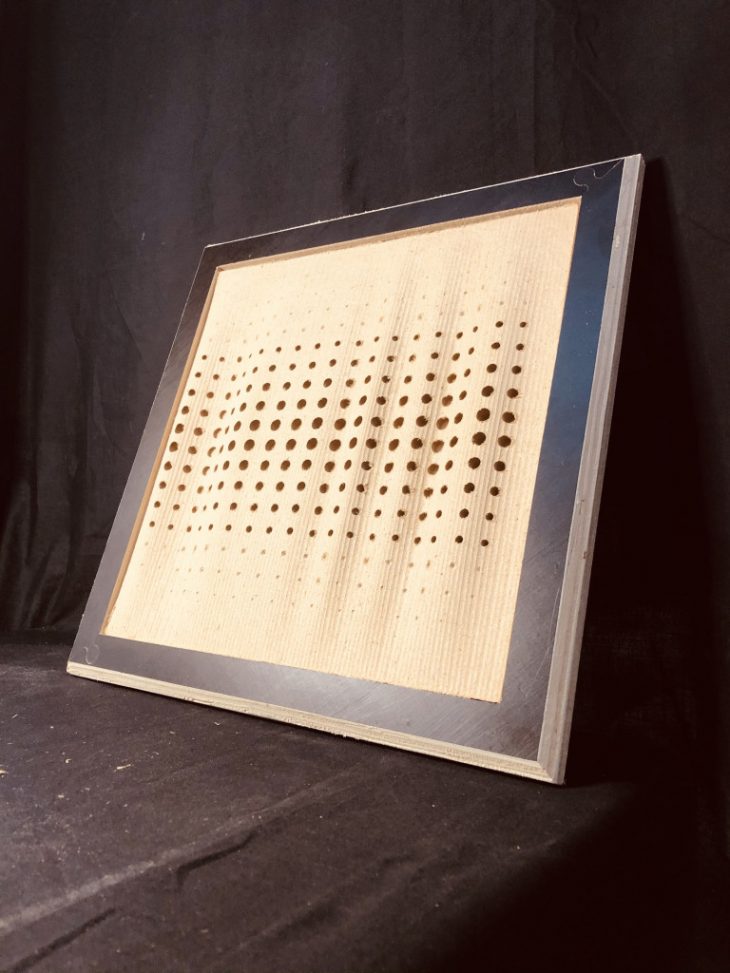

Production

Credits

Bukit Pantai – CNC Milling is a project of IAAC, Institute for Advanced Architecture of Catalonia developed at the Master in Advanced Architecture in 2020-2021 by students: Shubham DahedarJiaqi Sun, Yasmine Chacour, and faculty: Ricardo Mayor Luque, Lana Awad, Shyam Zonca
