CLEAN AIR

A automated system designed to regulate and monitor indoor air quality in a given work environment

CONCEPT

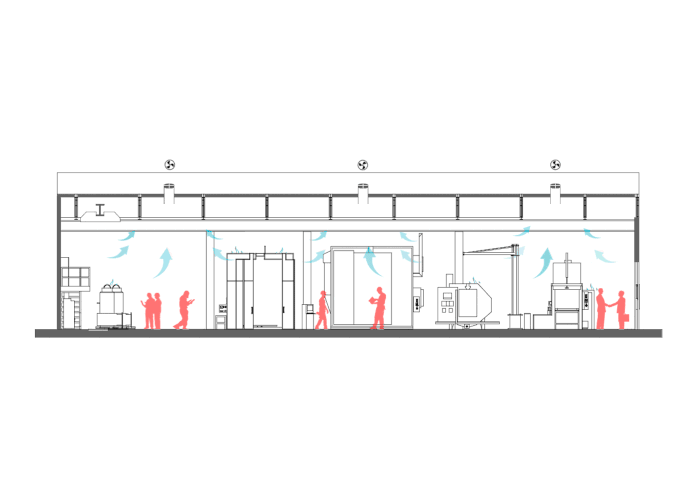

To provide ventilation in a fab-lab, factory or science laboratory where the users are exposed to harmful fumes and gases that are untraceable by human senses. Thereby reducing their exposure to these gases on the long run.

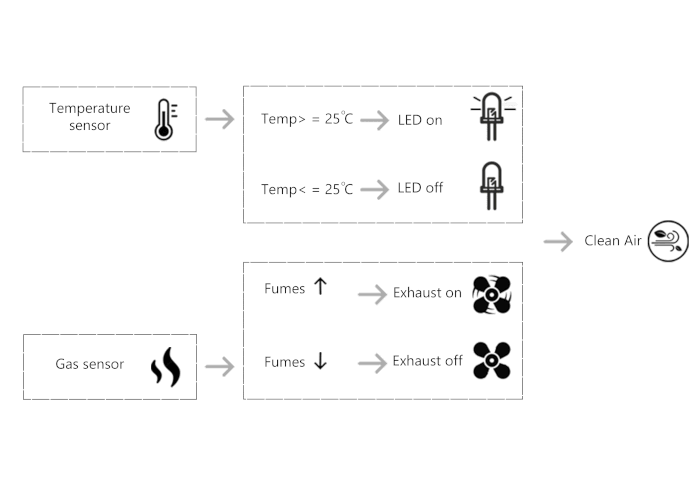

SCHEMATIC DIAGRAM

Gas sensors are used to detect any toxicity present in the air. This will automatically provide an input to the DC motor to run. Simultaneously, if the temperature of the room, detected by the DHT11 sensor, rises beyond a certain value, an input to the LED light bulb is provided.

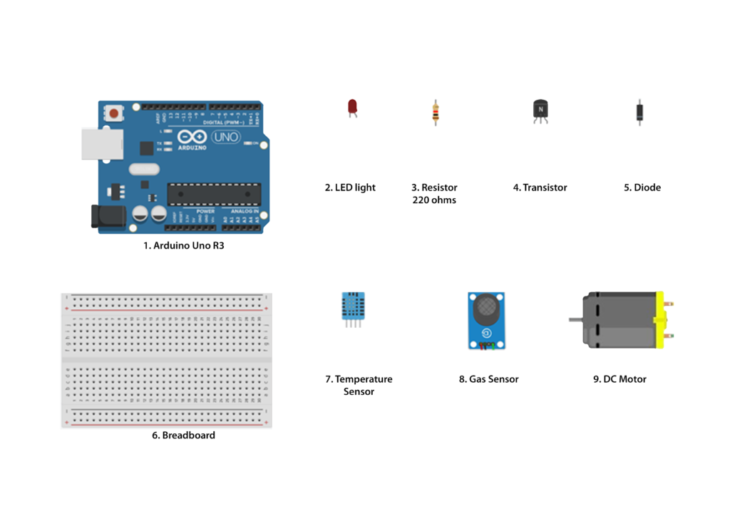

COMPONENTS

CIRCUIT

Clean Air is a project of IAAC, the Institute for Advanced Architecture of Catalonia, developed in the Master in Advanced Architecture (MAA01) 2021/22
Student: Neha Jayanth Pattanshetti
Faculty: Angel Muñoz, Bernat Morato, Cristian Rizzuti
Course : Introduction to Programming and Physical Computing
