PROJECT TITLE

CNC Milling – Cement Casting

DATA

Material: Cement

Technique: Casting

CONCEPT

This project aims to cement cast the casted object by creating the molds in using the potential of CNC milling and digital technologies. The molds were sculpted within a foam slab following trimmed tense shapes. The final casted objects appeared with different gentle shapes to which cement paste was to be added to create blocks from these molds.

METHODS

The achieve the shapes of the molds in a cemented block, first of all cement, sand and water ratio with 1:4:2 was made and then added to the molds on after the other slowly. Then each block was left to dry for 1 and a half week until the each cement poured block dried up on its own naturally without using any digital tools. After one and half week the molds were formed and the cemented blocks were taken out of each block.

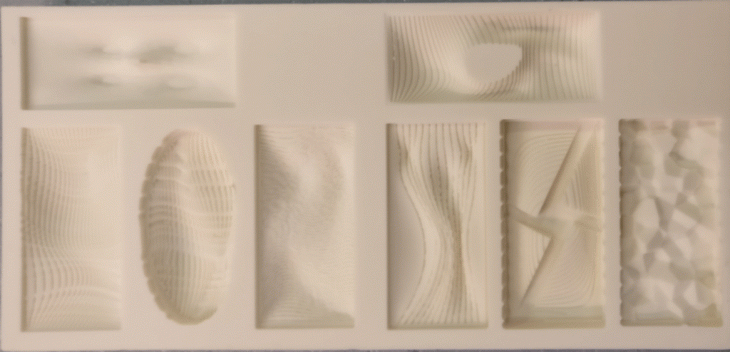

Day 1 – CNC Milling Block Sheet

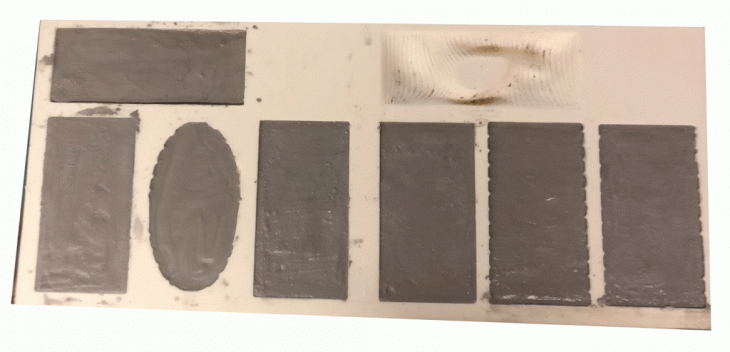

Day 1 – Cement mixture filling in each block

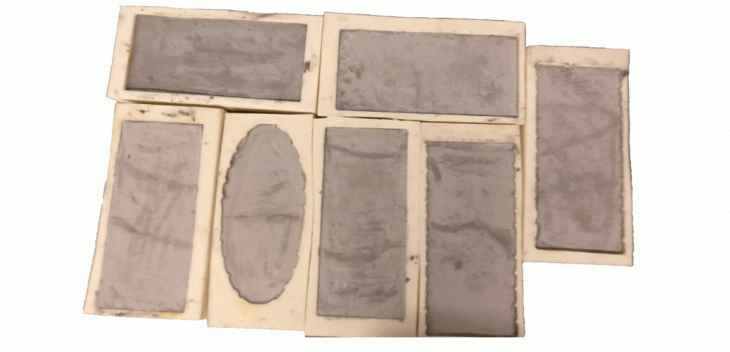

Day 7 – Cement Blocks almost dried

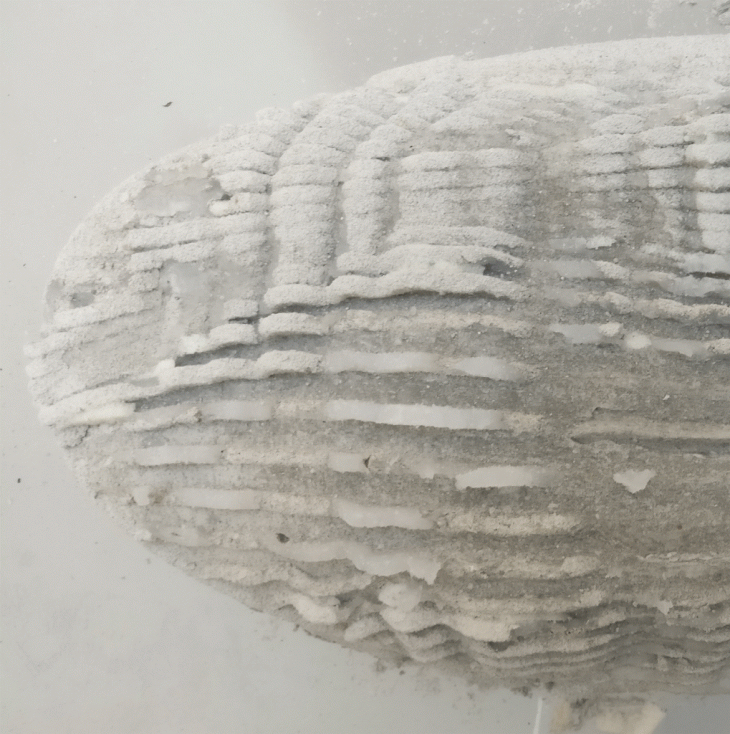

Day 12 – Final Results, Cement Casted Blocks

________________________________________________________________________________

TUTOR

Djordje Stanojevic

STUDENT

Pratyaksh Sharma

MaCT 2016-2017
