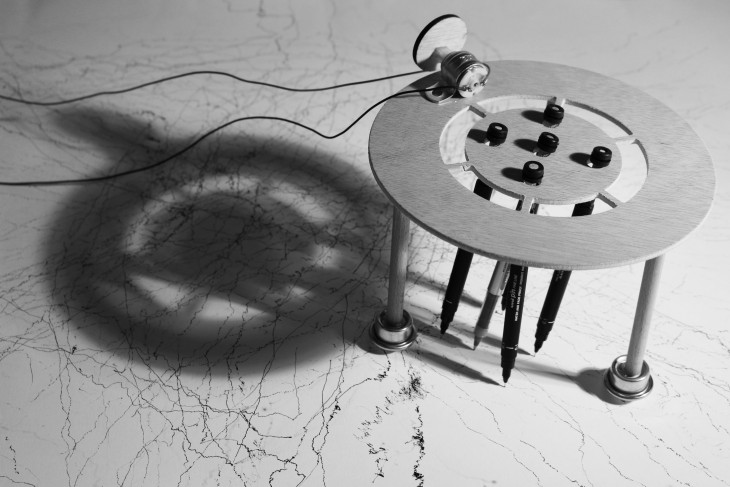

A source of energy that translate sound into drawing. The result is either doted, dashed or continuous lines. Relationship between the music being played and the drawing is directly establish since height beat sounds accelerate the machine, whereas a low beat sound slow it.  Therefore, a classic type of music cause doted lines drawing, and an electrical one will cause heavy line weight.

IAAC_DRAWING MACHINEIAAC_DRAWING MACHINE
IAAC_DRAWING MACHINEIAAC_DRAWING MACHINEIAAC_DRAWING MACHINEIAAC_DRAWING MACHINEIAAC_DRAWING MACHINE



The Drawing Machine is a project of IaaC, Institute for Advanced Architecture of Catalonia developed at  Master in Advanced Architecture Program, in 2015/16 by:

Students: Nour Mezher / Rana Abul Mageed

Faculty: Edouard Cabay
