ECO VEGASecovegas



thermodynamics

foodlab, rollercoaster and vertical farms

M1: THERMODYNAMIC FABRICATIONS MAEB 2018-19 Faculty: Javier Garcia German

A project by Qiao Liang and Vincent Charlebois

Solar chimneys, vertical aquaponics, foodlab and rollercoaster!



Barcelona 41.28° North, 2.07° East

Climate Analysis

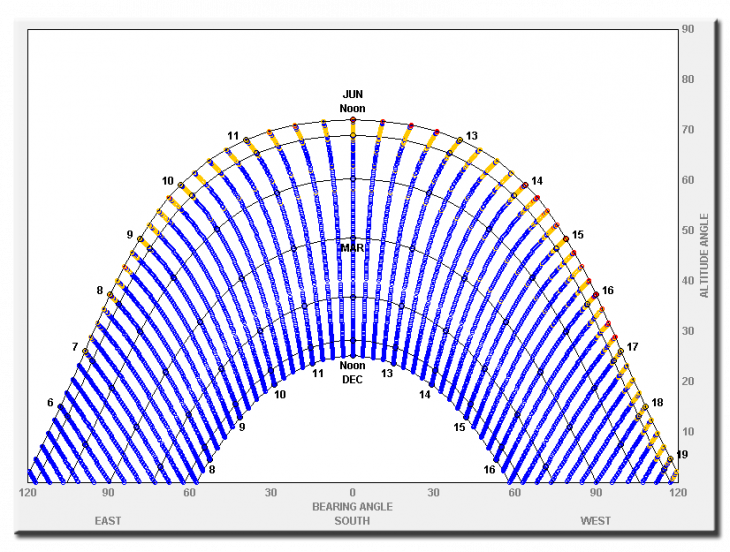

high solar potential of 1463kWh/m2 on a horizontal surface, maximal sun angle of 25º (winter) – 71º (summer) mean annual ambient temperature 16.33ºC soil temperature at 10m depth is identical to average annual temperature annual variation from 0 in the winter to 32 in summer daytime-nightime difference in temperature 5-7ºC 50% direct radiation ratio>potential for redirection of solar radiation outdoor humidity mostly above 50% and can reach 90% with a very usual dew point between 18-22 humidity is a comfort problem in summer main wind direction southwest (summer) northwest (winter) limited precitipation summer-winter, main precipitation autumn anual total 628mm

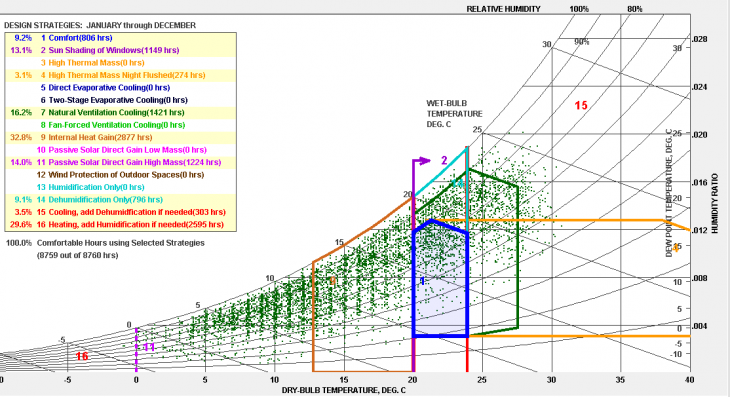

human comfort temperature 20-24ºc humidity 30-60%

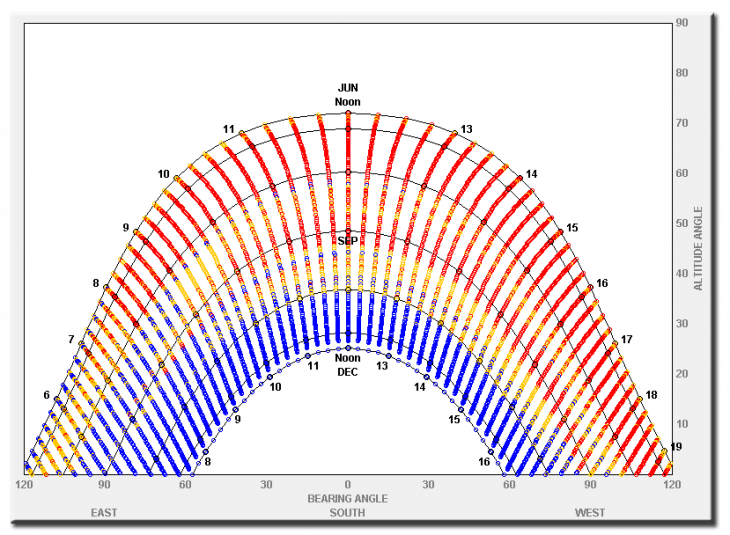

Summer

Winter

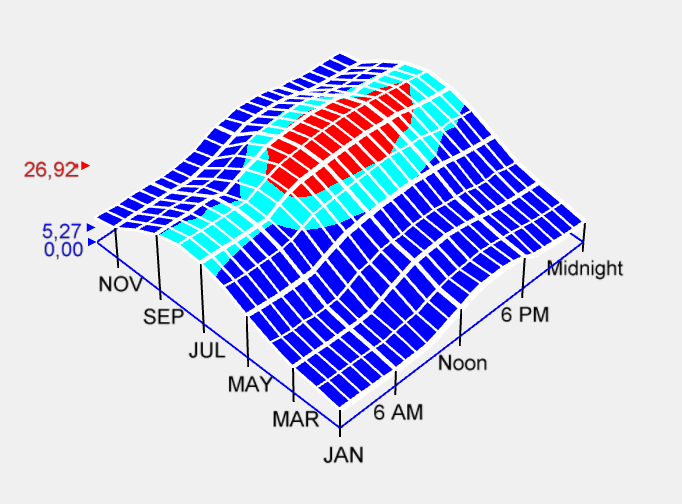

3d chart monthly average temperatures
High: 26,92°C Low: 5,27°C

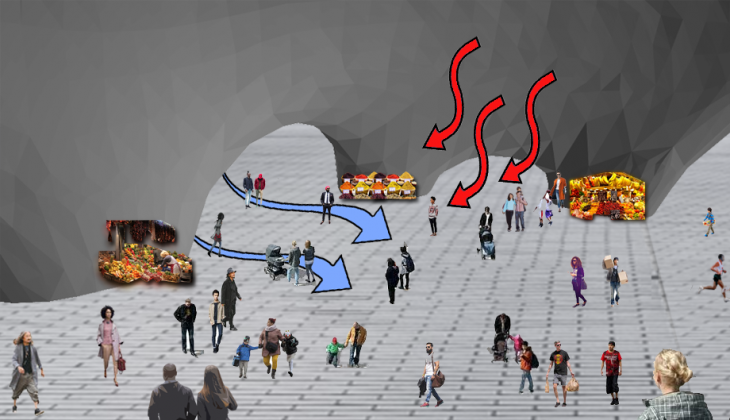

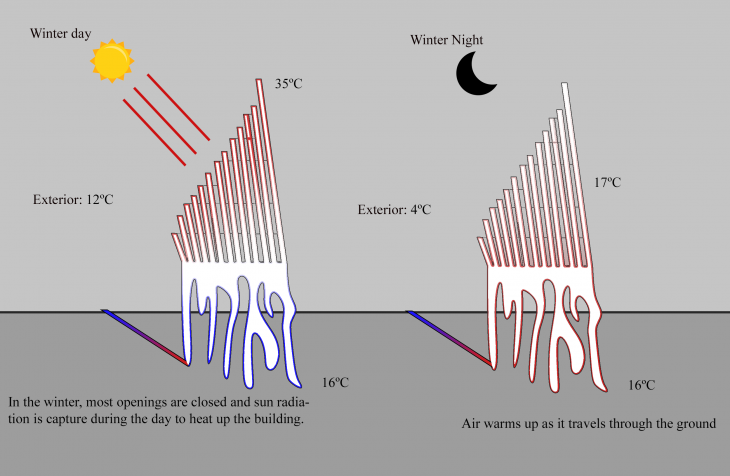

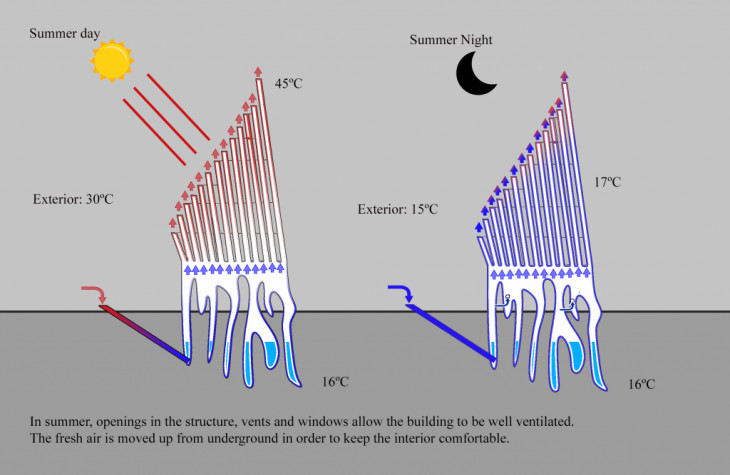

Thermodynamic Diagrams





Renders

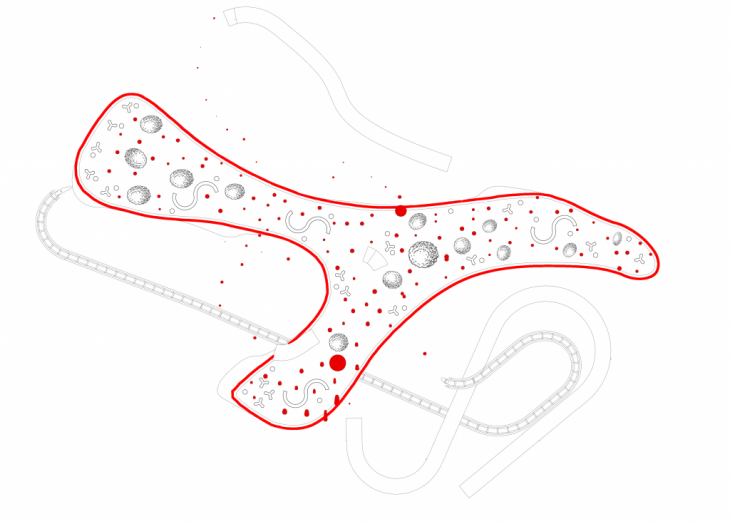

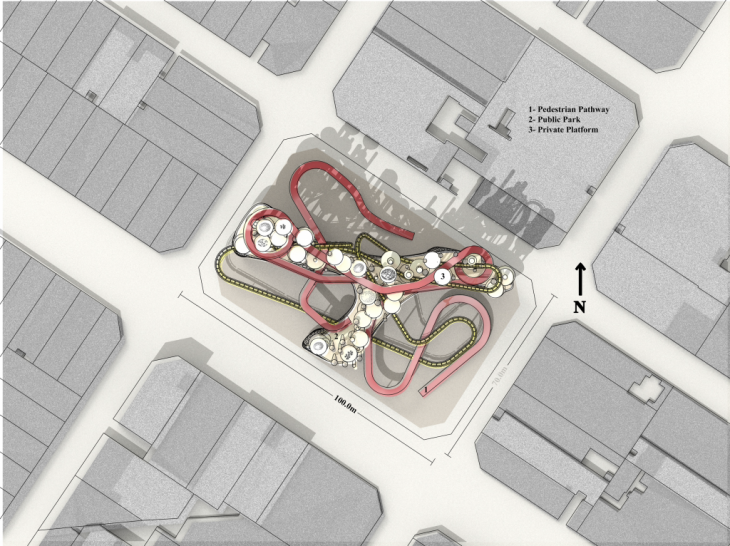

Platform and Master Plan

eco_vegas plaftform



MAEB 2018-2019



M1: THERMODYNAMIC FABRICATIONS MAEB 2018-19 Faculty: Javier Garcia German

A project by Qiao Liang and Vincent Charlebois
