­GYROID LAMP­

Started as an idea to experiment with an organic form. To test the 3D printing to the fullest potential. We came across a form – “Gyroid” which really fascinated us. We started exploring and realised it was do-able. Nevertheless, we went hands-on in Rhino and made a number of additions and deletions. For our test print, we had a module. Once it was two and half hours printed, having discussed further, we realised the amendments and improved the form further by removing the perforations and strengthening our bridges. We also decided to print the final with a translucent material rather than the opaque. Finally, came the form, completely organic and in layers.

Students: Montakan Manosong, Malavika Mehta, Ricardo Mayor Luque
Tutors: Alexandre Dubor, Matteo Guarnaccia
Fabrication Process – 3d Printing
Material Used – PLA Translucent 3mm
Time Taken – 8.5 Hours Machine Time

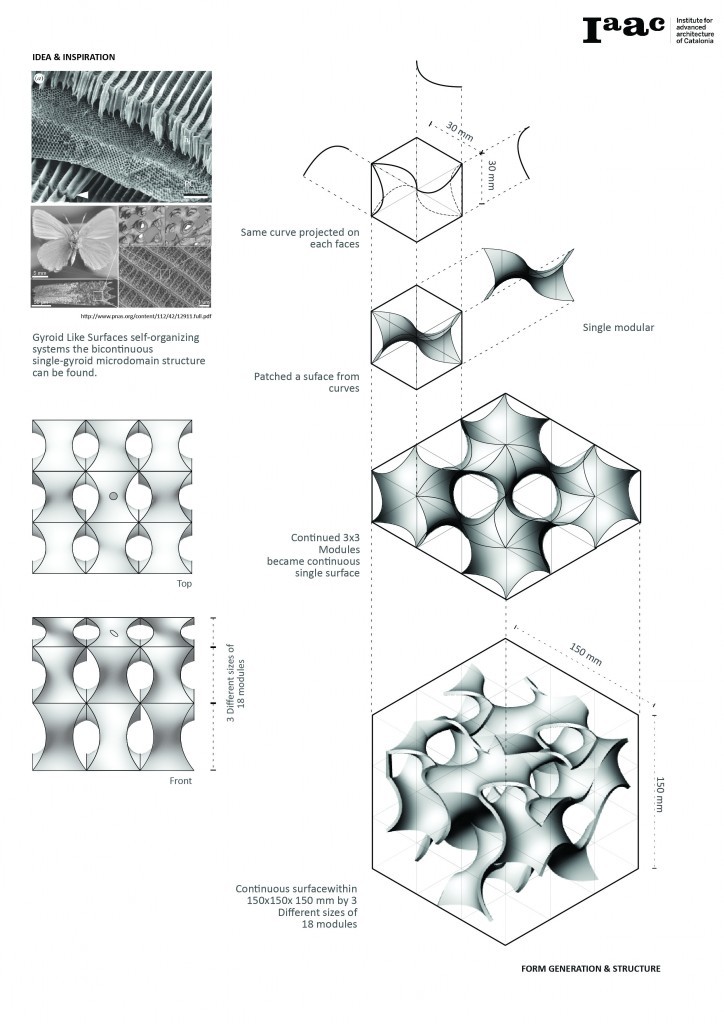

14-3d-printing-gyroid-lamp-manosong-mayor-mehta_diagram

Diagram

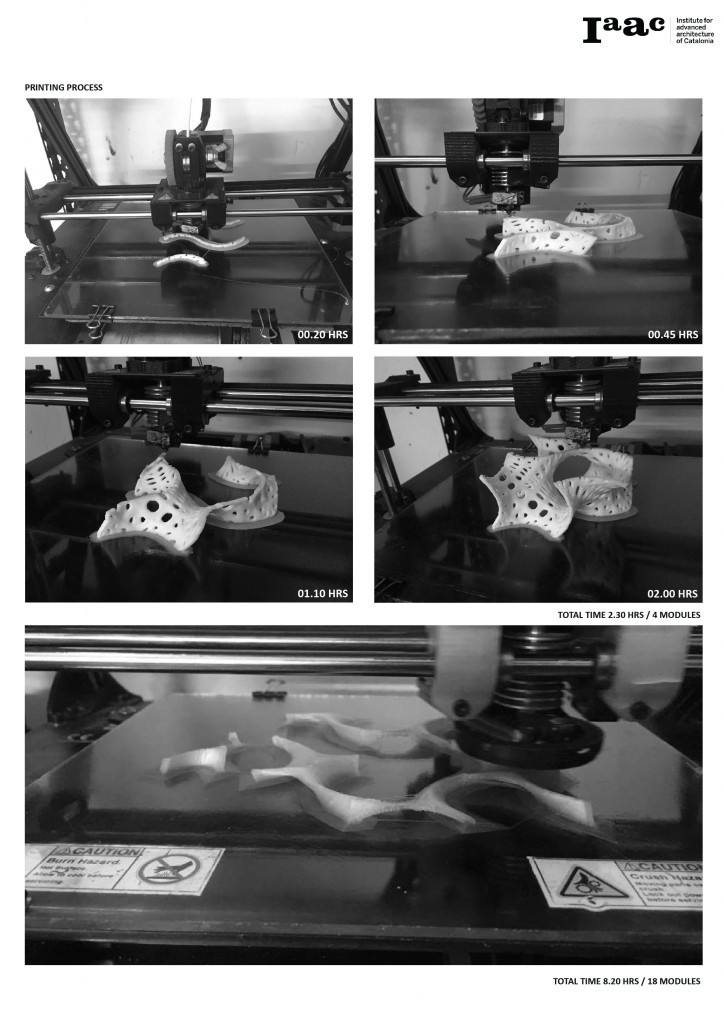

14-3d-printing-gyroid-lamp-manosong-mayor-mehta_process

Timming Process

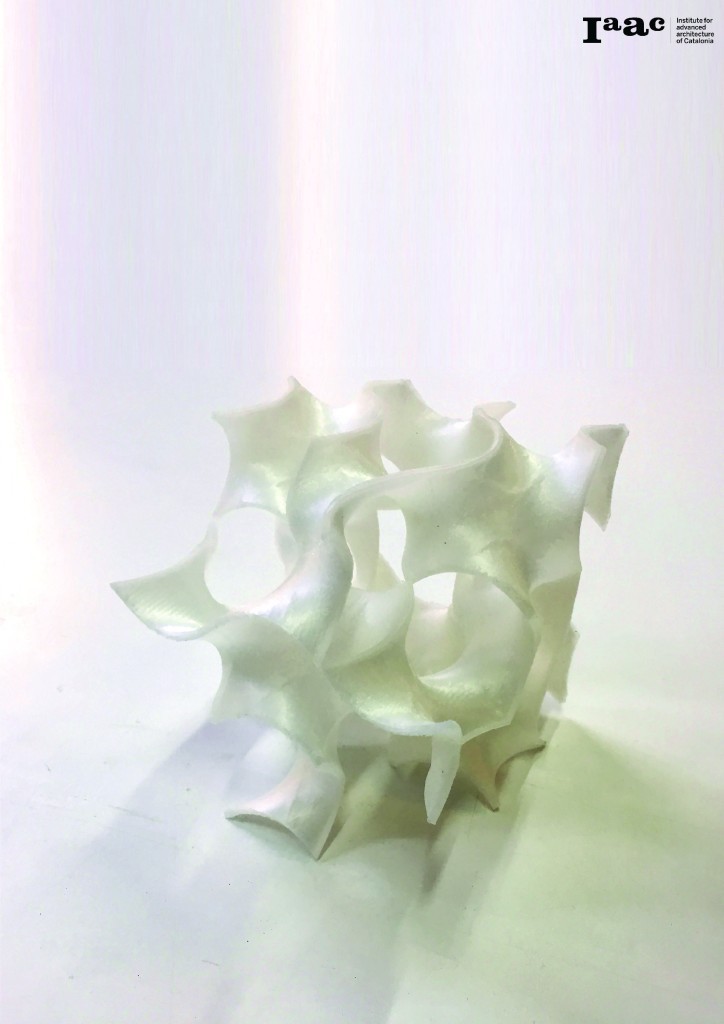

14-3d-printing-gyroid-lamp-manosong-mayor-mehta_final

Final

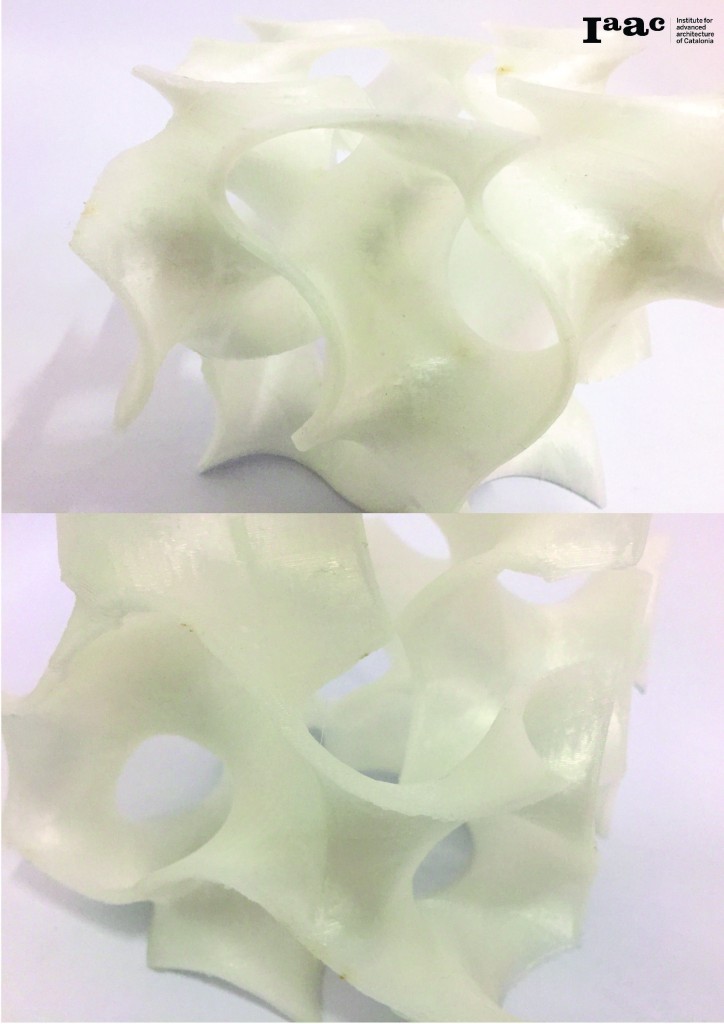

14-3d-printing-gyroid-lamp-manosong-mayor-mehta_detail

Detail

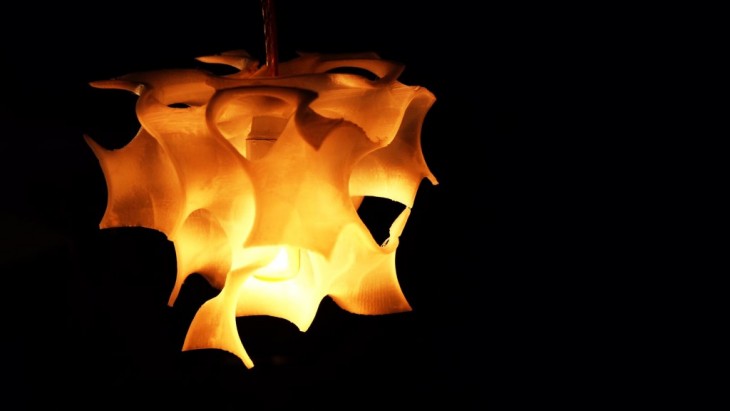

14-3d-printing-gyroid-lamp-manosong-mayor-mehta_final2

Lamp



GYROID LAMP is a project of IaaC, Institute for Advanced Architecture of Catalonia developed at Master in Advanced Architecture in 2016 by:
Students: Montakan Manosong, Malavika Mehta, Ricardo Mayor Luque
Tutors: Alexandre Dubor, Tomas Martin Agudo , Ricardo Valbuena
