JONERY SYSTEM FOR PLUG&DISPLAY

The aim of this exercise is to determine the orientation and number of the joints according to each combination of modules.

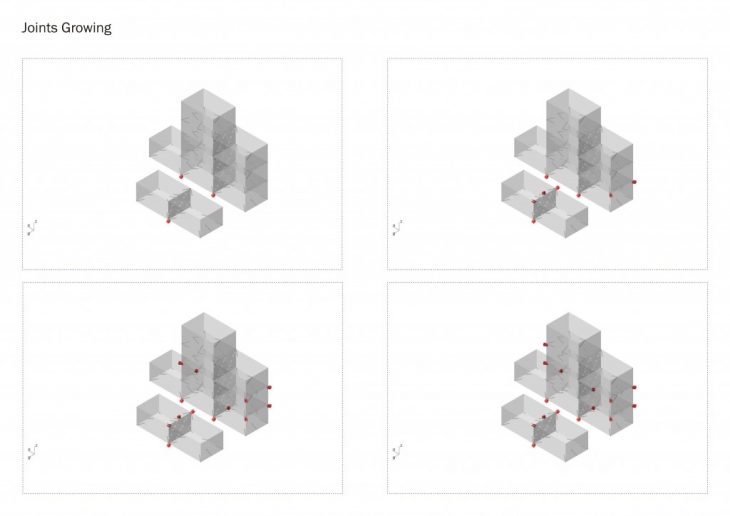

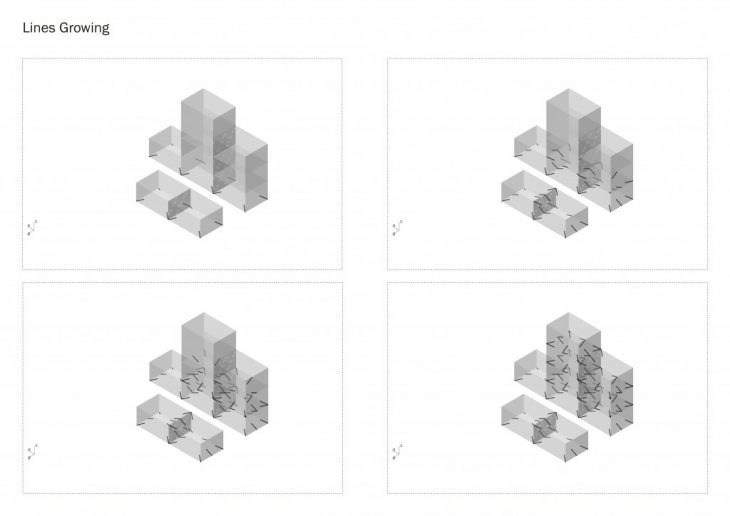

The development of the code allows to have this simulation of joinery analysis that has been worked in parallel to the design of the pieces, allowing a visualization of how the elements behave according to the multiple possibilities. Determining the number, position and function of each joint.

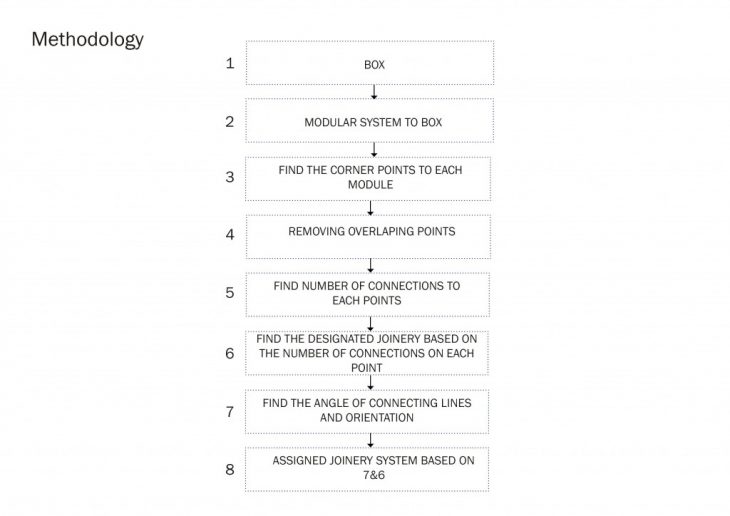

The following diagram will explain the steps to define the orientation of the joint in relation to the position of the module.

System

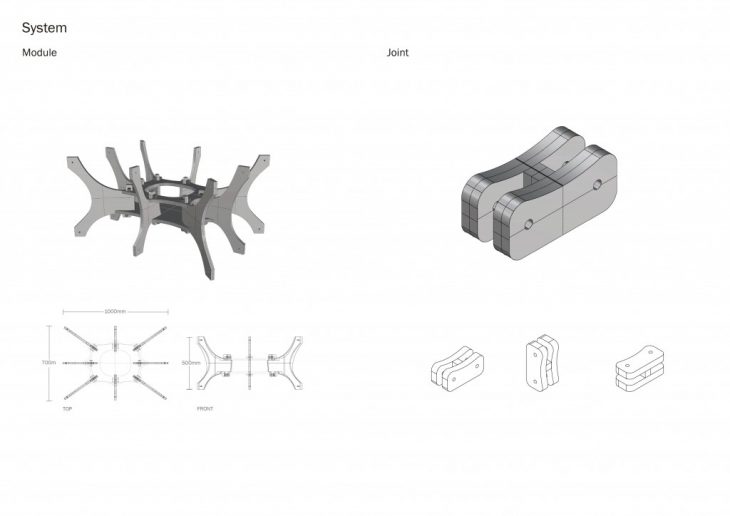

The modular system permits to combine the following piece in multiple configurations, assemble it using specific orientation of the joinery.

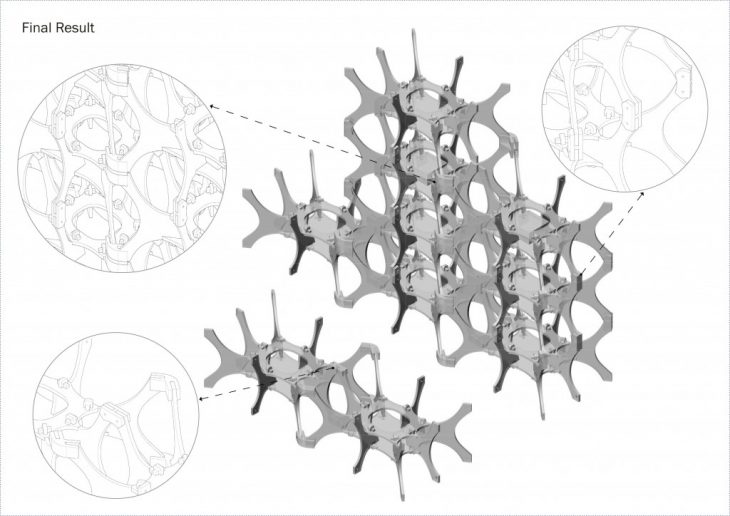

The joinery can be used in different connections, vertical, horizontal or diagonal, depends on the position of the module.

Computational Design Workshop

Tutors: Rodrigo Aguirre

Student: Cristina Pardo
