Module Layering

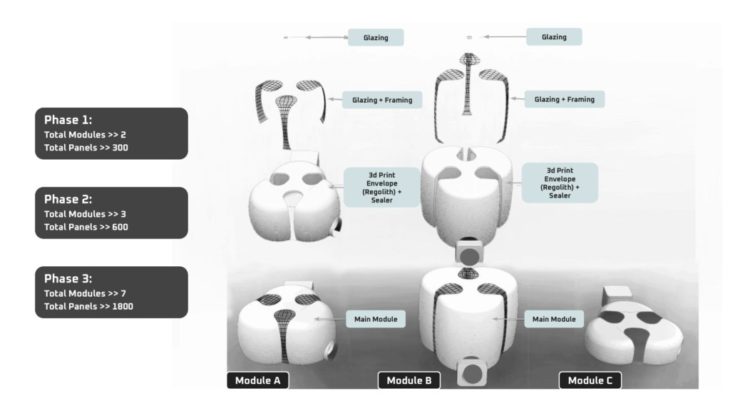

Total there are 5 types of modules proposed. Each module is then design and modelled in Revit and Grasshopper. The initial design of the module is started in the grasshopper and also the parametric paneling script is developed in the gh where as the adaptive component of revit is used for the façade paneling to make it sync with the gh by using rhino common. The final layouts are prepared with in BIM revit.

Phase 01 # Plans

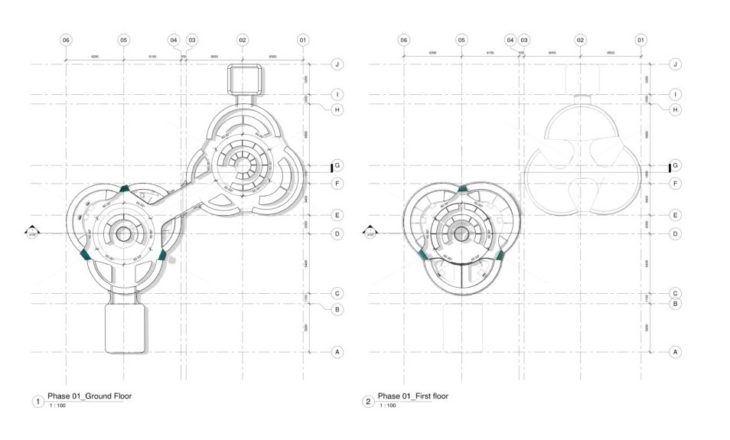

Ground Floor in phase 1 has workshop, data center and 1st Floor in phase 1 has Bio lab only.

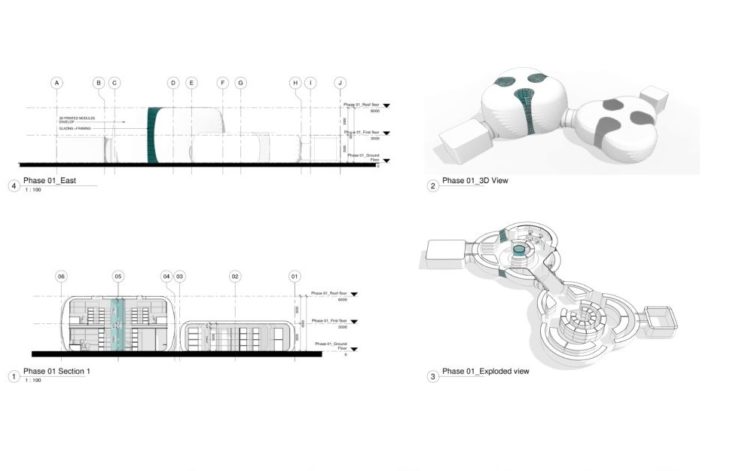

Phase 01 # Elevation, Section and 3d

Phase 01 # Schedules

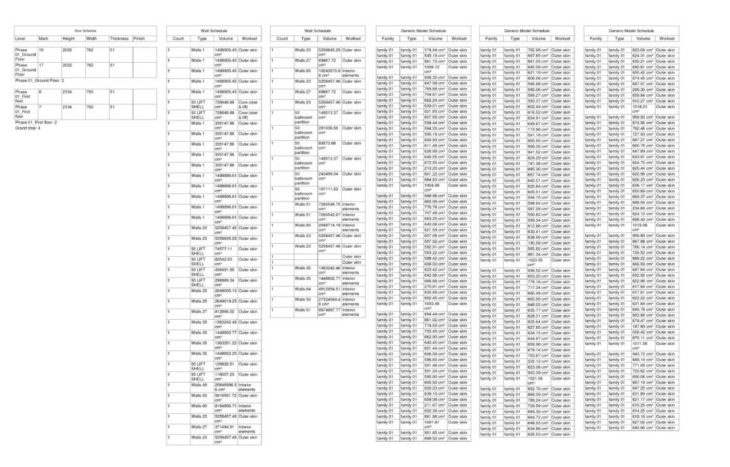

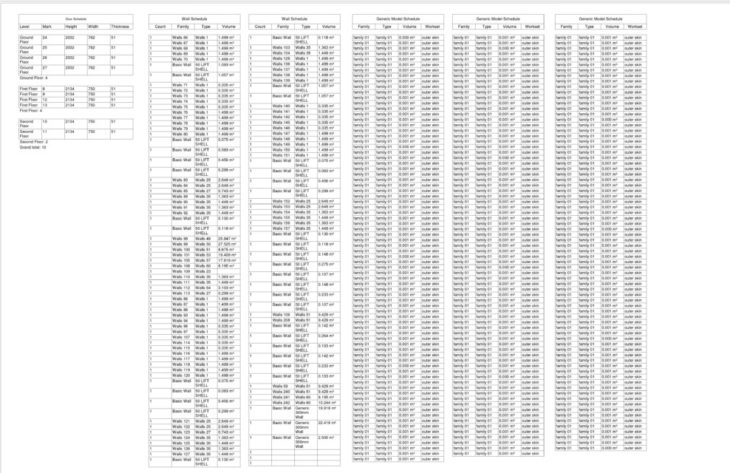

The schedule of walls and doors from revit BIM.

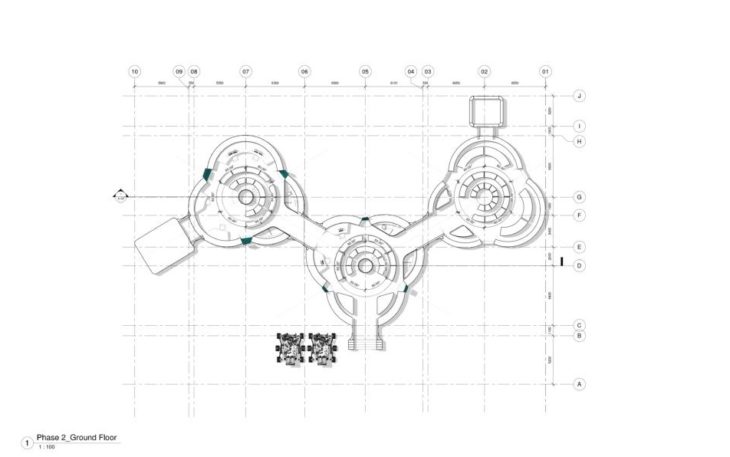

Phase 02 # Ground Floor Plan

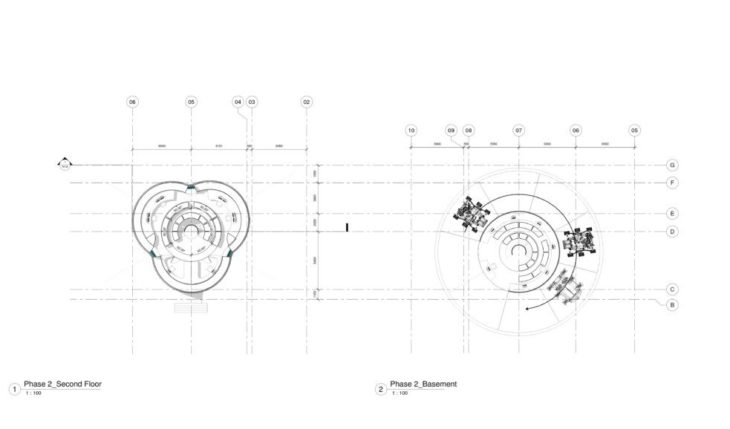

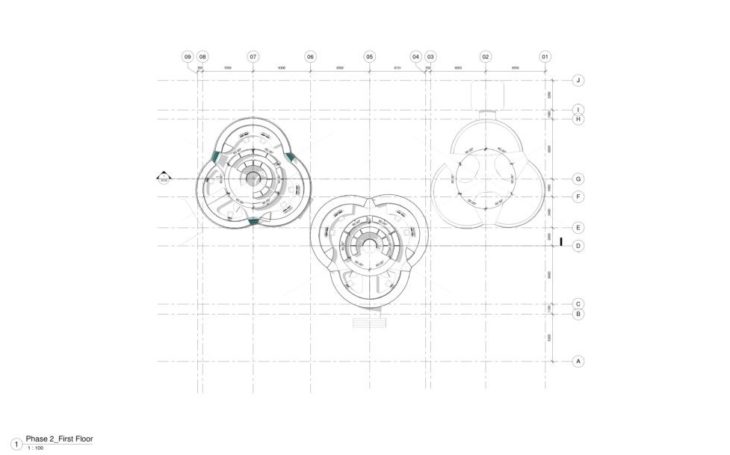

Ground Floor in phase 2 has workshop, data center and visitor center. 1st Floor in phase 2 has Bio lab + Movie Studio and 2nd Floor in phase 2 has Geology lab only.

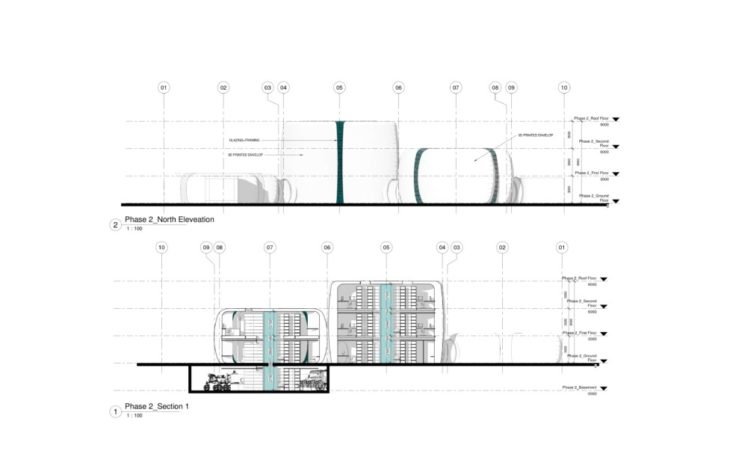

Phase 02 # Elevation, Section and 3d

Phase 02 # Schedules

The schedule of walls and doors from revit BIM.

Phase 03 # Ground Floor Plan

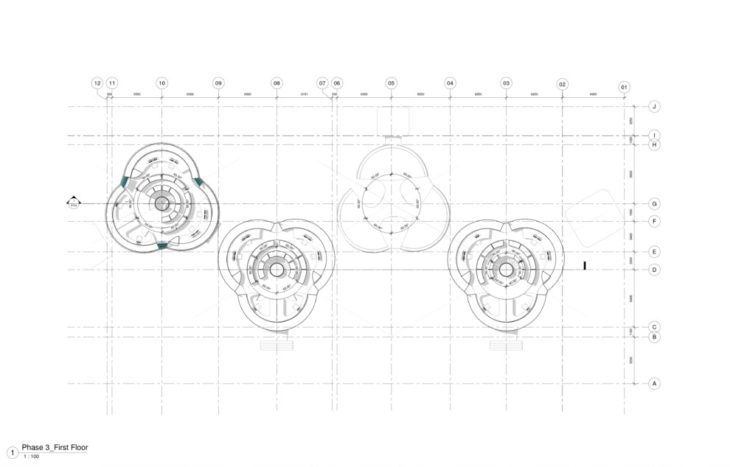

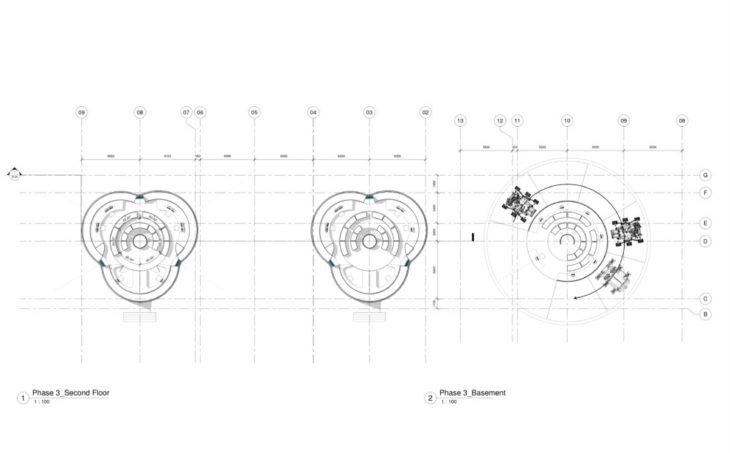

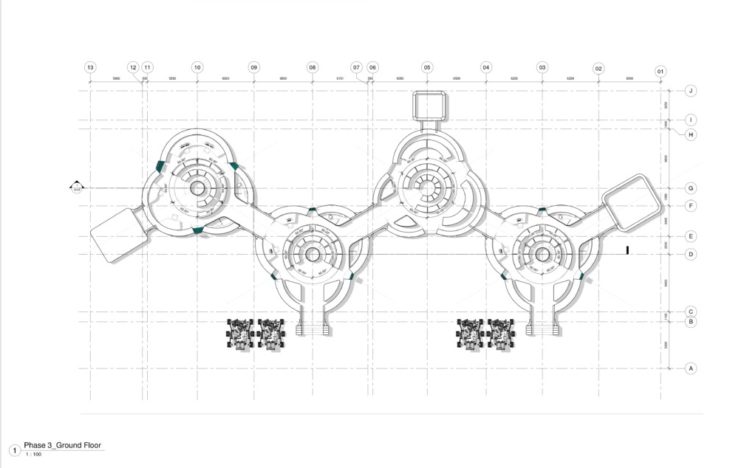

Ground Floor in phase 3 has 2 workshops + Data center + Visitor Center, 1st Floor  has Biolab + Geo lab + Movie Studio, 2nd Floor has Bio lab + Geo lab and in the phase 3 the basement is introduced of advance level for maintaining the rovers.

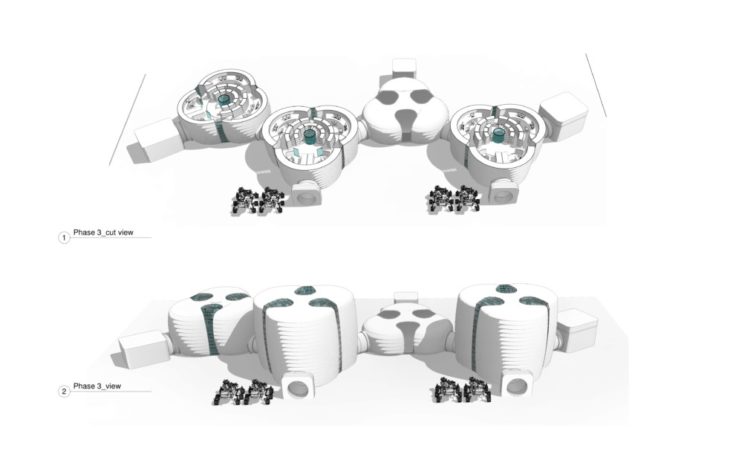

Phase 03 # Elevation, Section and 3d

The lunar base is divided into 5 main group in the studio. The  focus of our group is to design the working space on moon.

Phase 03 # Schedules

The schedule of walls and doors from revit BIM in phase 3.

Moon Working Module is a project of IAAC, Institute for Advanced Architecture of Catalonia developed in the Master in MACAD 2021/22 by:

Students: Muhammad Mansoor Awais, Sidhant Chaudary

Faculty: Oscar Herrero, Andres Antolin
