Adobe Printing

Section II

Climatic Performance

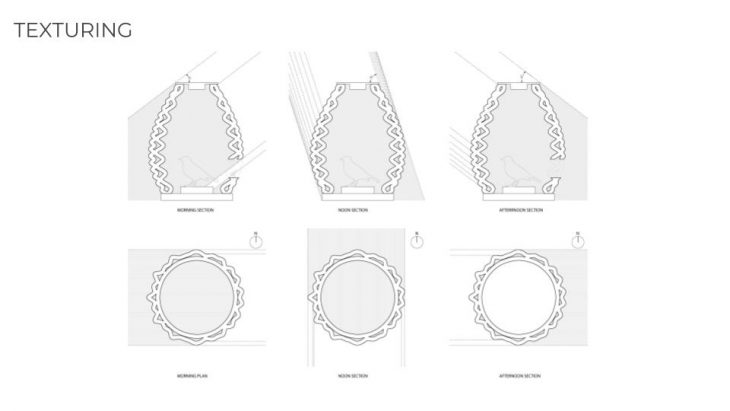

TEXTURING

STRATEGY

Texturing in local detailed geometry tuning which is related to solar radiation direction to create dimple surface to increase exposed surface area that achieve a better evaporative performance in summer time.

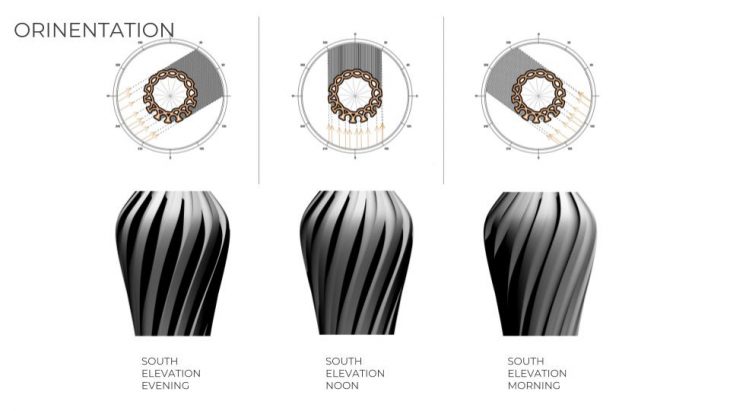

ORINENTATION

STRATEGY

Orientation in global geometry tuning which is related to radiation direction to increased surface area in south part to provide self-shading in horizontal direction in the meanwhile decrease surface area in north part to achieve a better climatic performance both for summer and winter.

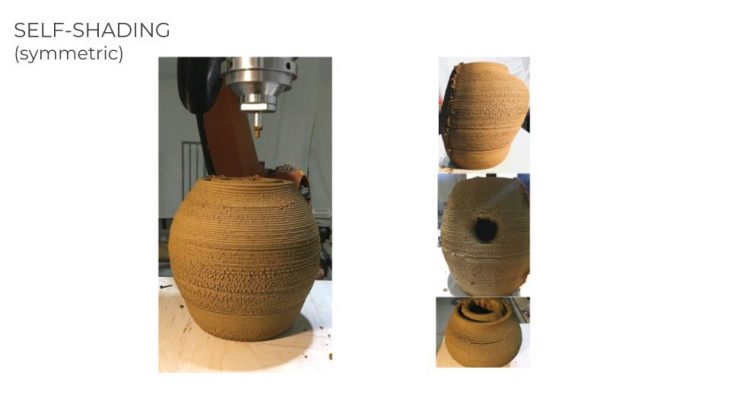

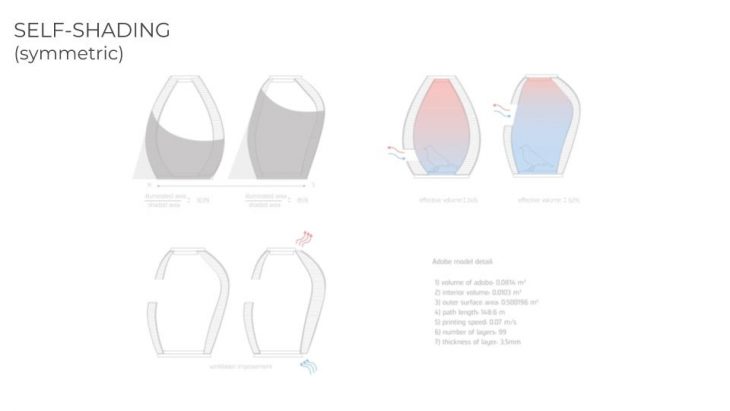

SELF-SHADING

(symmetric)

Self-shading (symmetric) which is global geometry tuning related to sun path to provide a extra self-shading area in vertical towards the sun to create a cooler area in the lower part of the house.

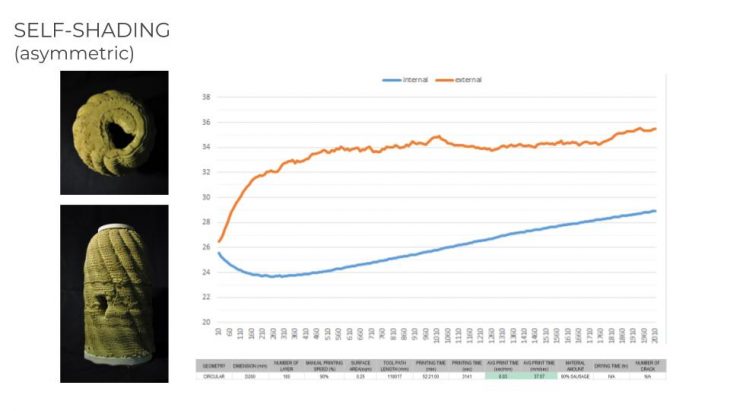

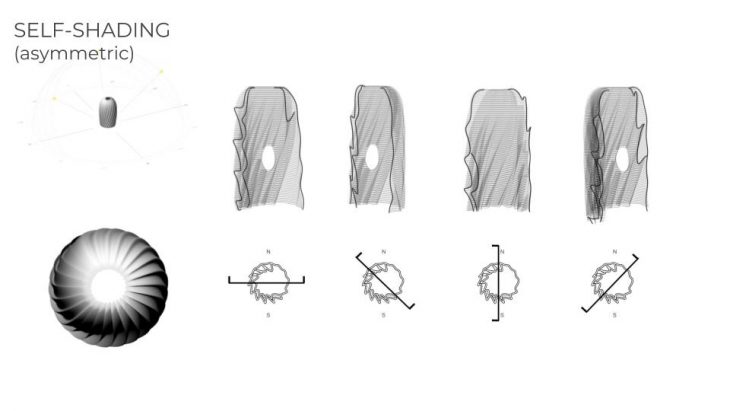

SELF-SHADING

(asymmetric)

Self-shading (asymmetric) tuning which is related to sun path to provide a self-shading area in horizontal direction to achieve a better cooler area towards the sun.

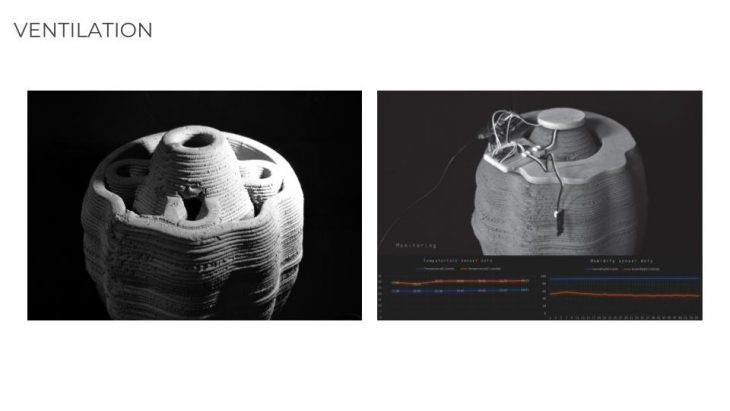

VENTILATION

Ventilation tuning which is related to middle layer between the inner surface and outer surface to create ventilated channel embedded achieve a better cooling condition when it channel is opened and achieve a warmer condition in it closed.
