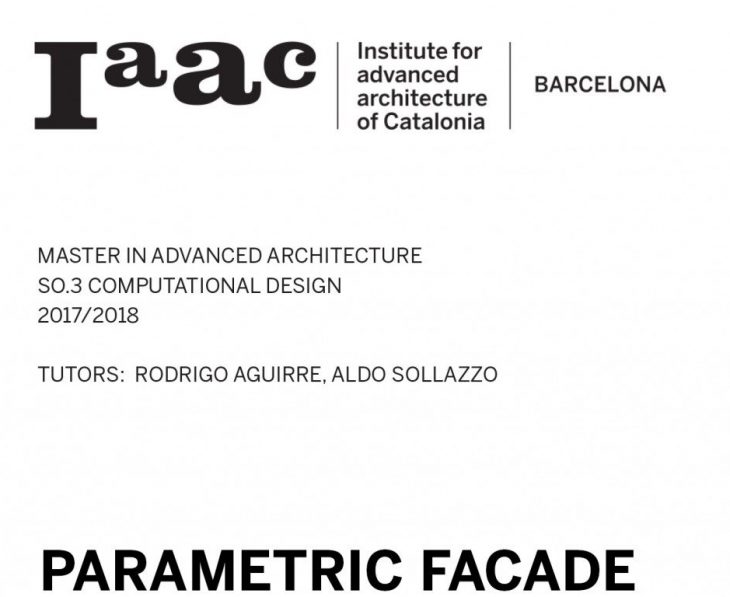

Institute for Advanced Architecture of Catalonia

Facade System

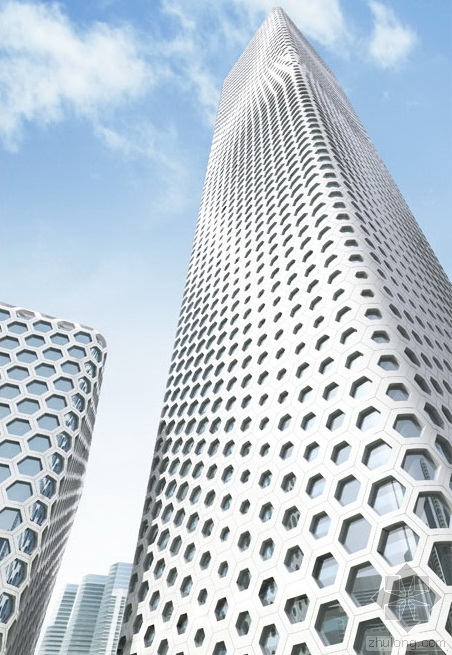

Sino-Steel Tower
Designed by Ma Yansong
Image from Internet

Image from Internet

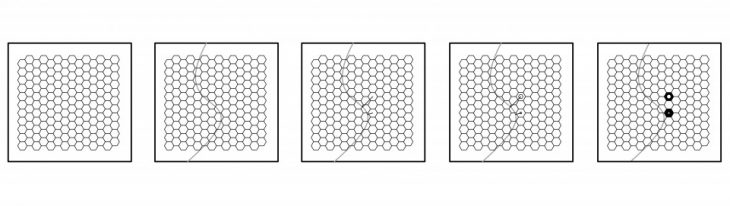

Single Steps

Step 1: Structure Frame.

Step 2: Interference Curve.

Step 3: The Distance from the Center Point to the Curve.

Step 4: The closer the distance to the curve, the larger the zoom ratio, the farther away from the curve, and the smaller the zoom ratio.
Composition with the original structure.

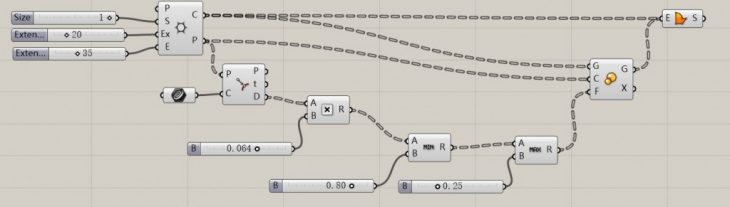

Grasshopper Organized

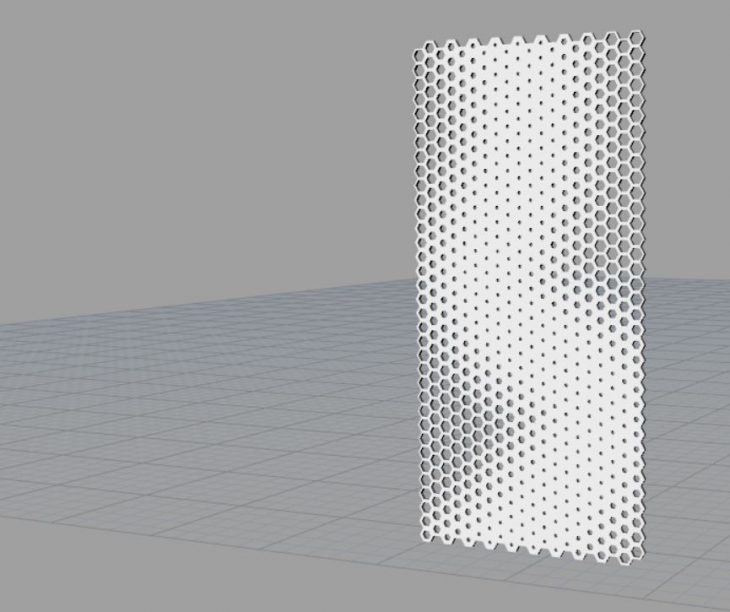

Result
