Abstract
The project ‘PIXEL GARDENS’ incorporates iterative growth strategies between vertical structures and along their faces. Strategies include defining the growth along a predefined curve that goes around these vertical structures. The modules that are developed are divided into three families, with each family dealing with a specific type of element, namely, the voxel framework, internal spaces, external spaces and additional elements.
Objectives
- Create a structure that connects to the buildings and encloses either internal or external spaces

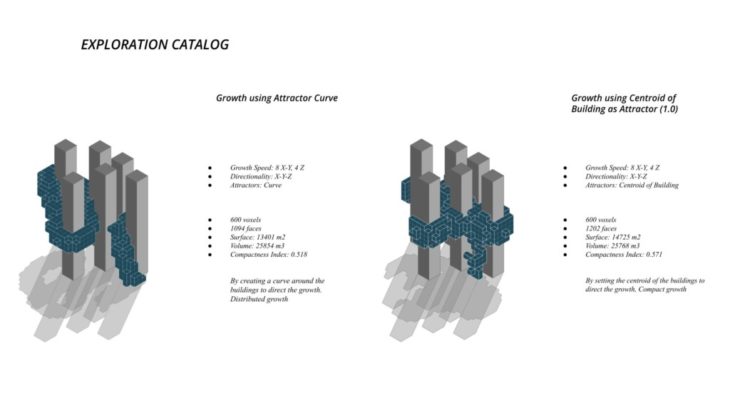

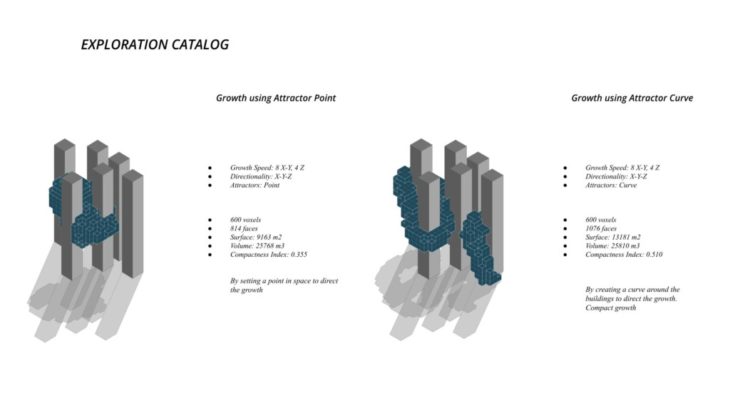

- Create a path of growth along an attractor that goes around vertical elements
- Grow more horizontally than vertically to maximize the water and sunlight harvesting
- Create architectural elements for internal and external spaces:

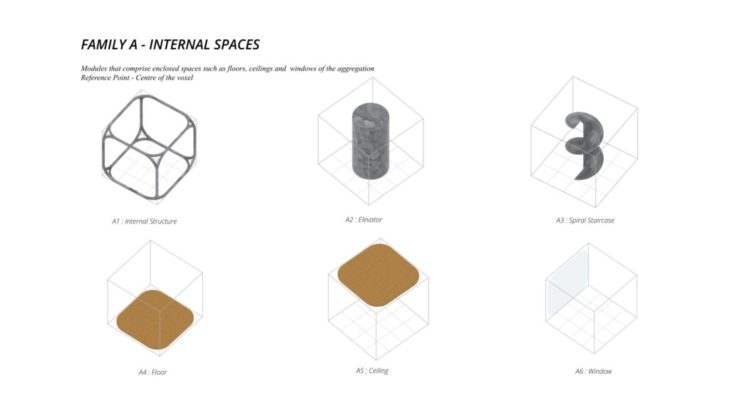

Internal Spaces
- Structure

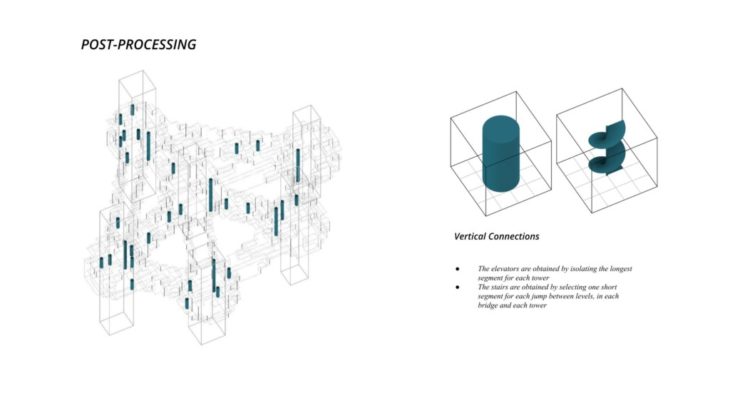

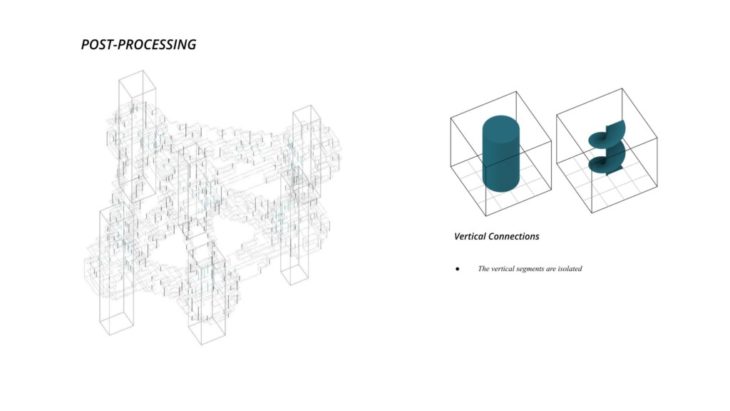

- Elevator
- Spiral staircase

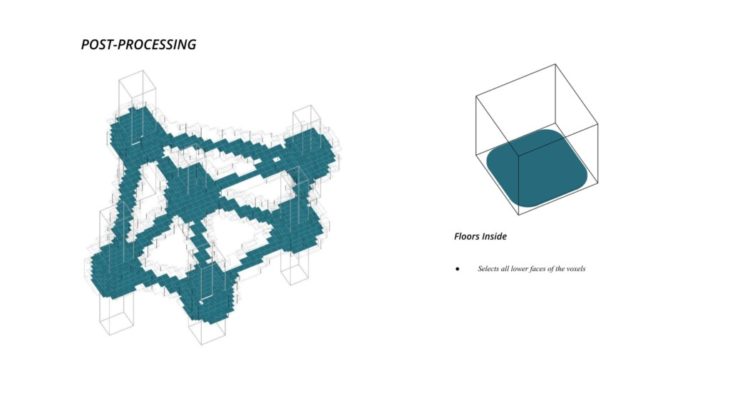

- Floor
- Ceiling

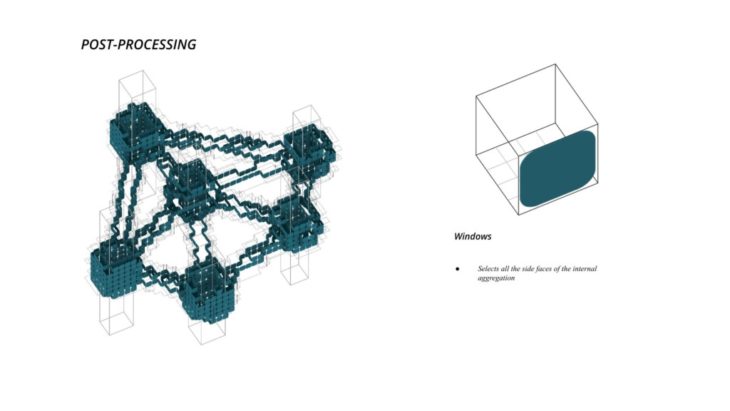

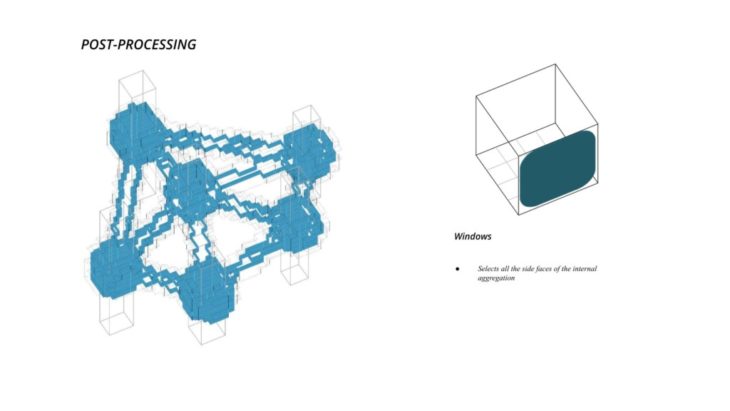

- Window

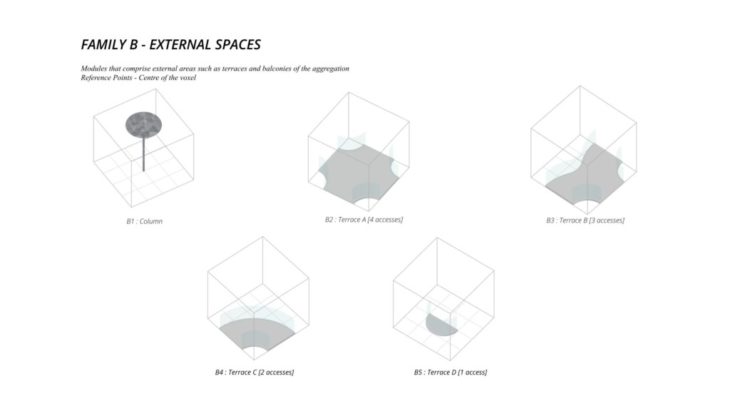

External Spaces
- Columns

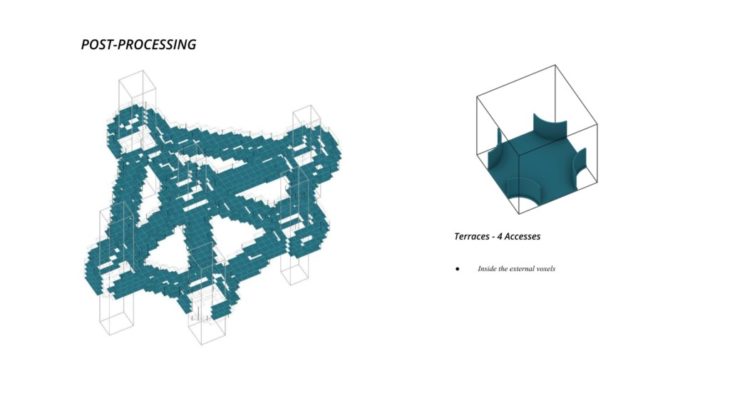

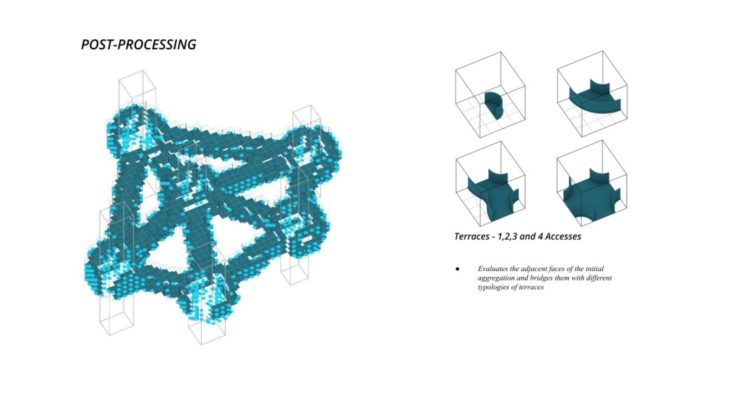

- Terraces
- Balcony
- Aggregation to be thicker close to the buildings and thinner along the “bridges”

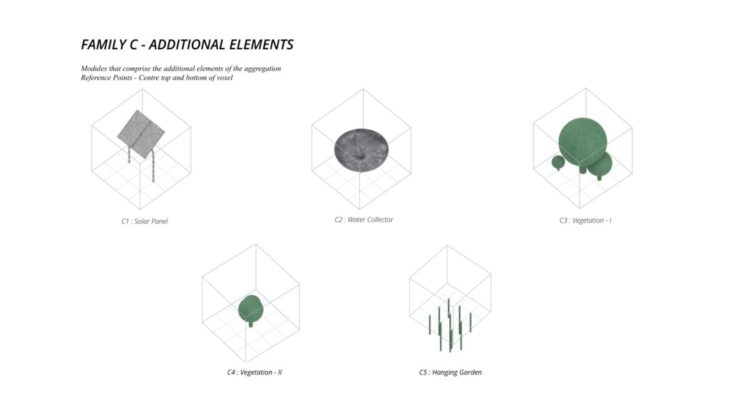

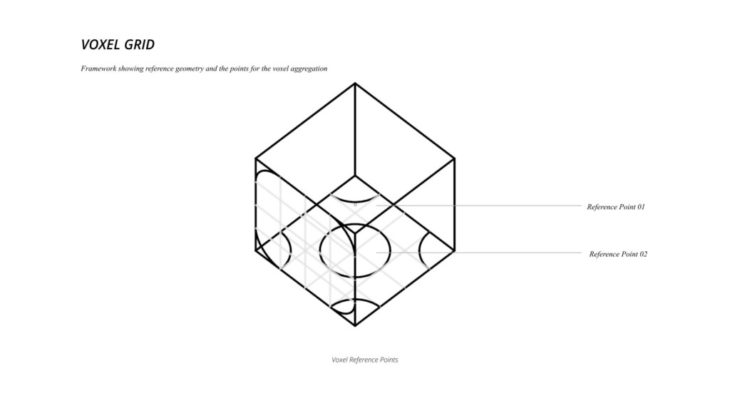

- The framework of the voxel is defined first, followed by Family A and B that define the overall structure while Family C defines the additional elements which follow the function of the space

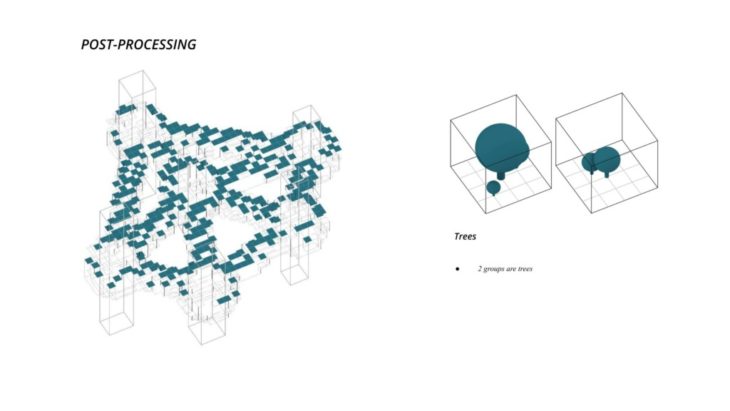

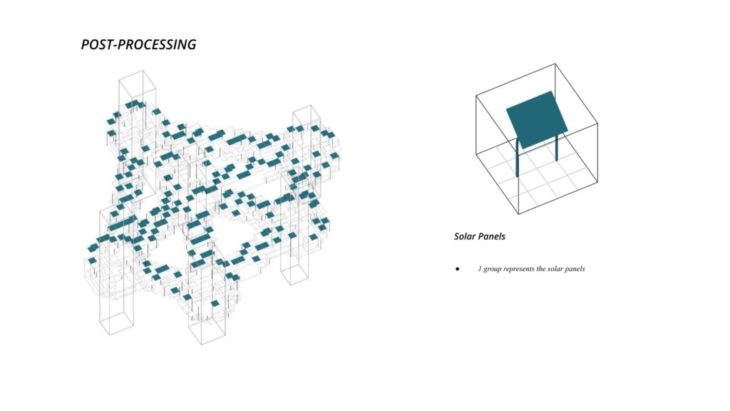

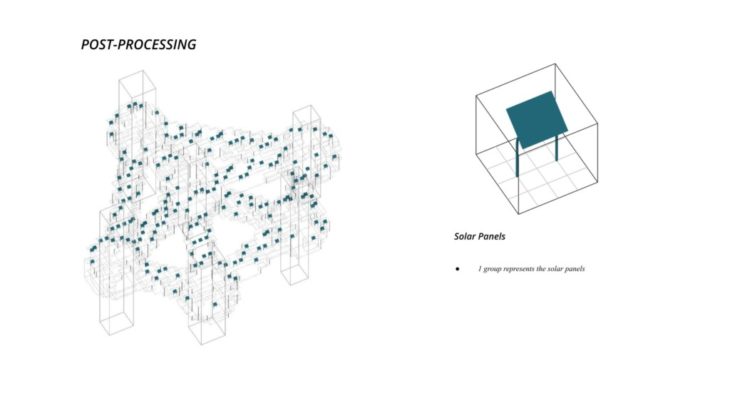

- Water collectors, solar panels and greenery will be concentrated on the roof
- Water distribution system to be defined from the central tower

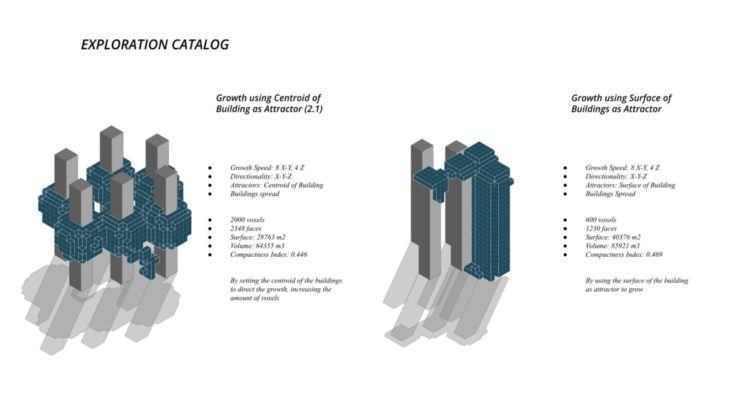

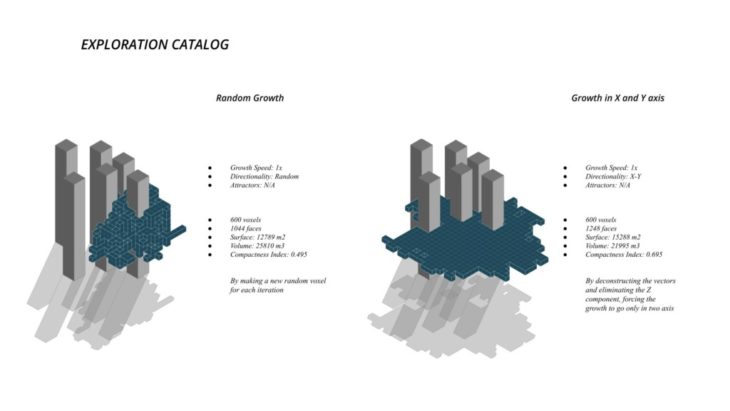

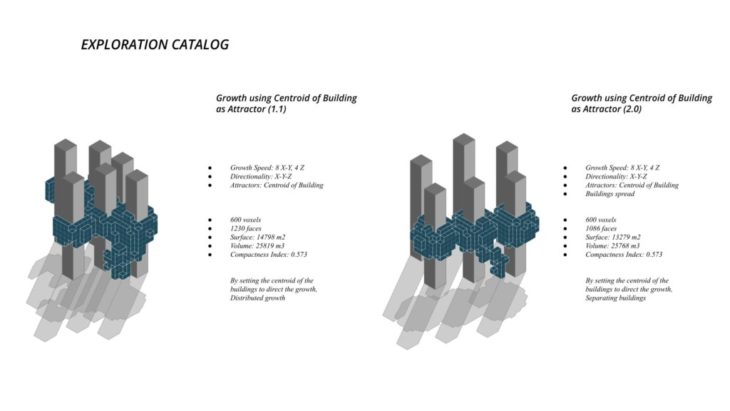

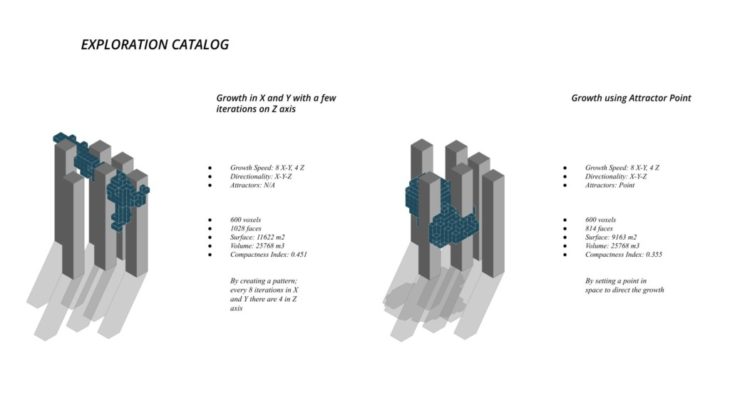

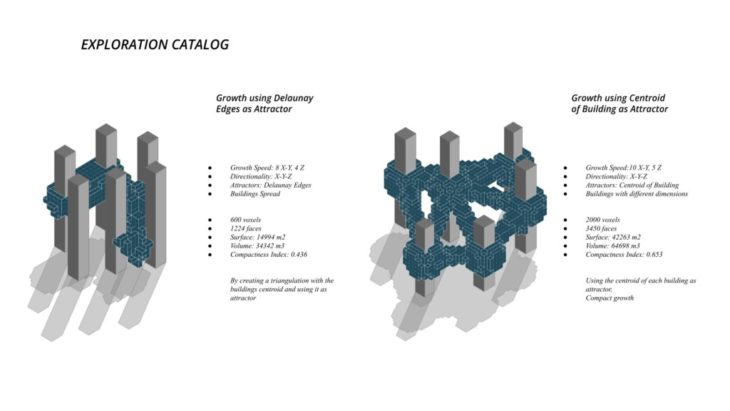

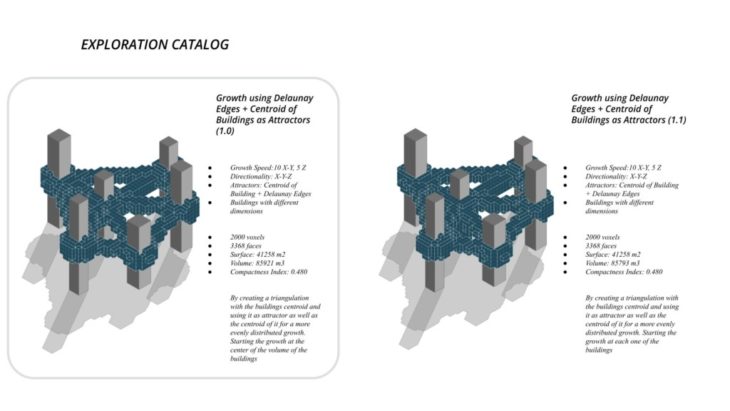

Growth

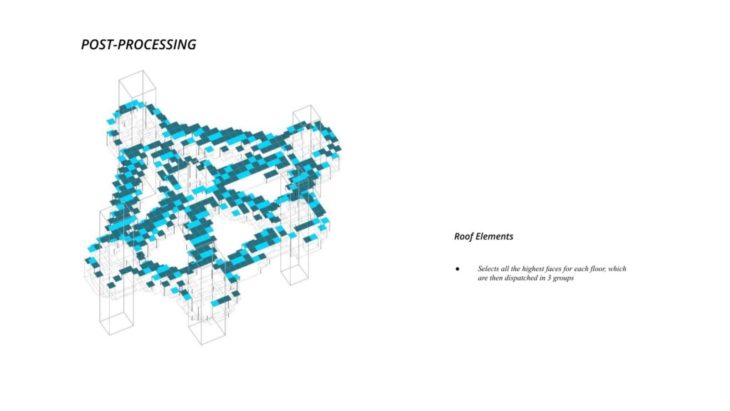

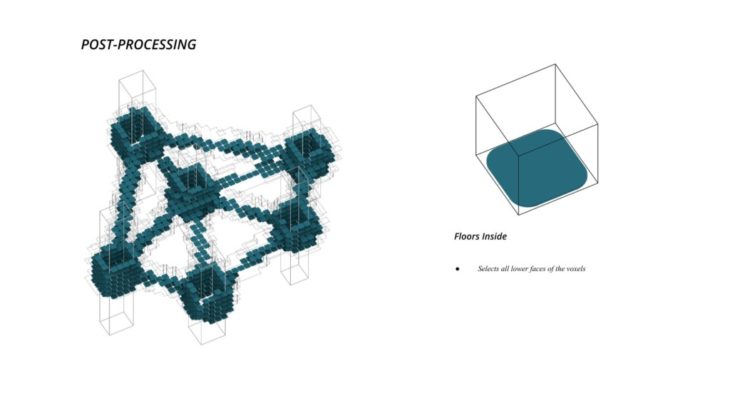

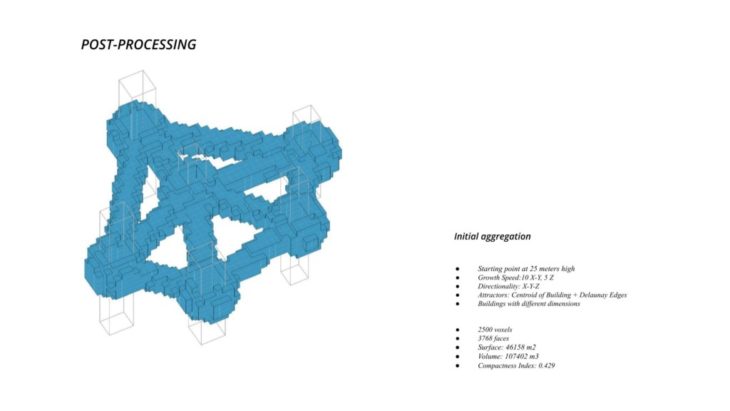

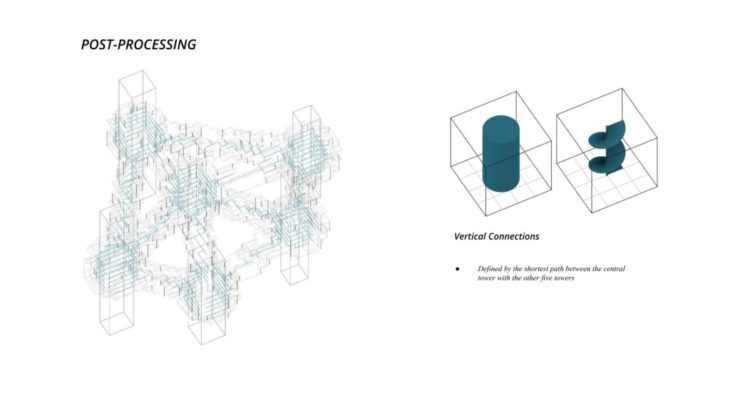

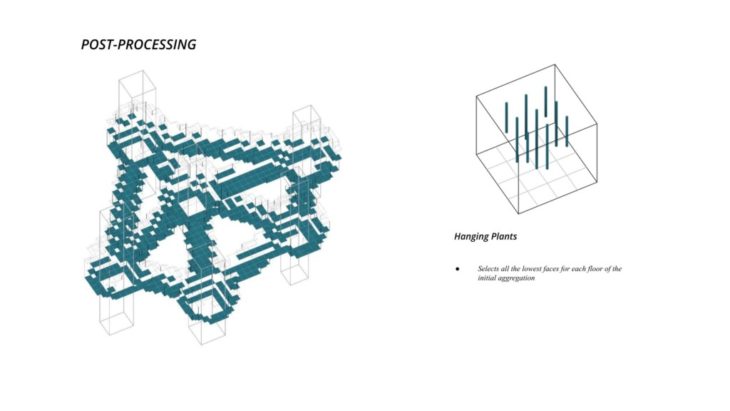

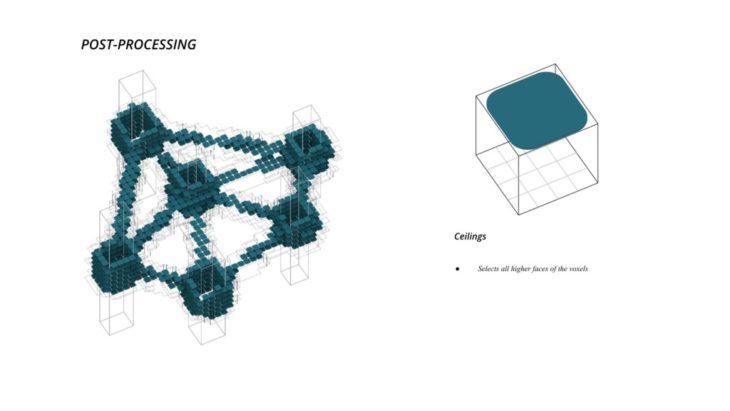

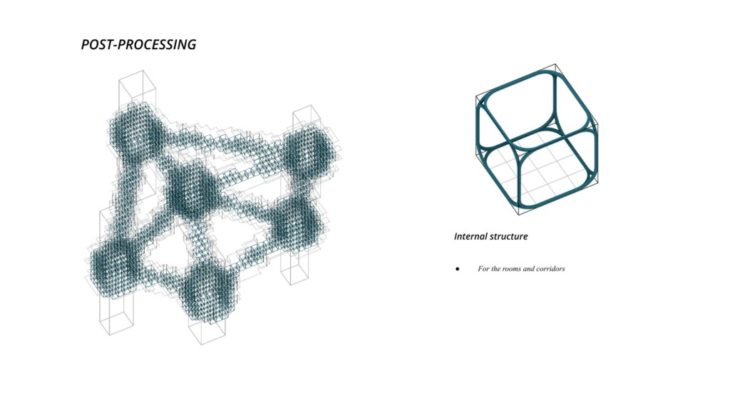

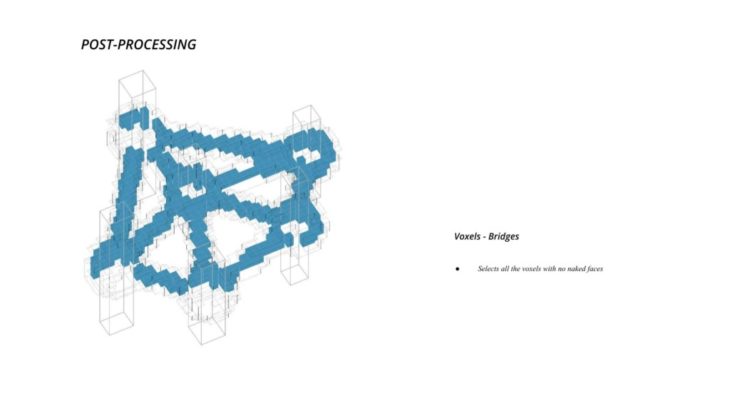

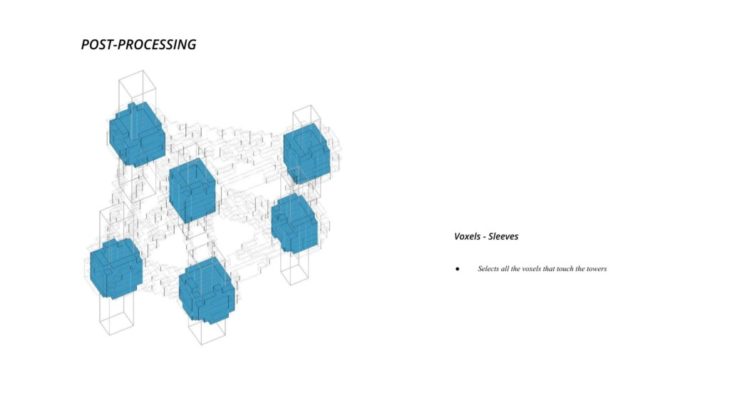

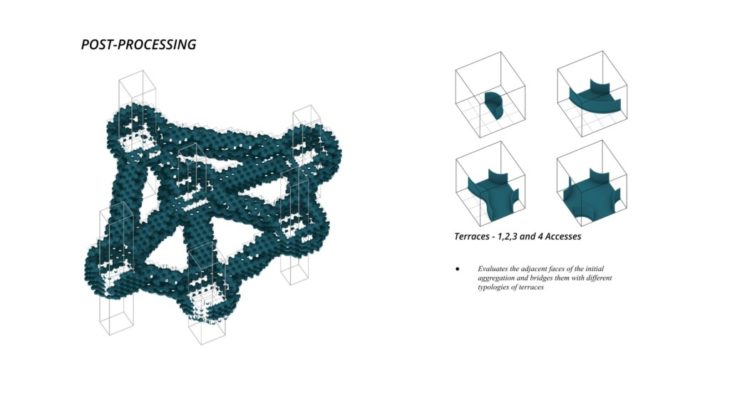

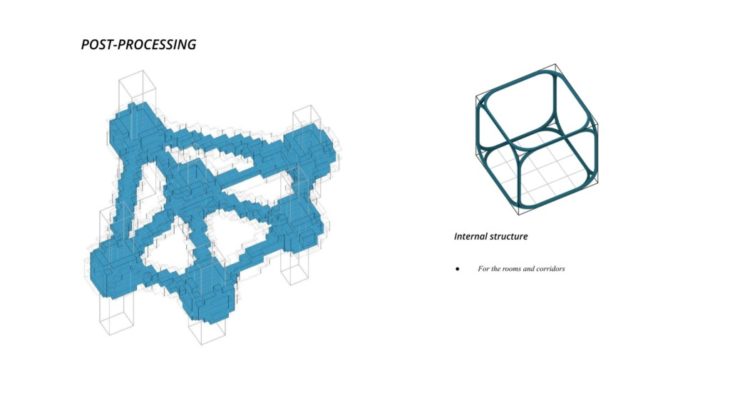

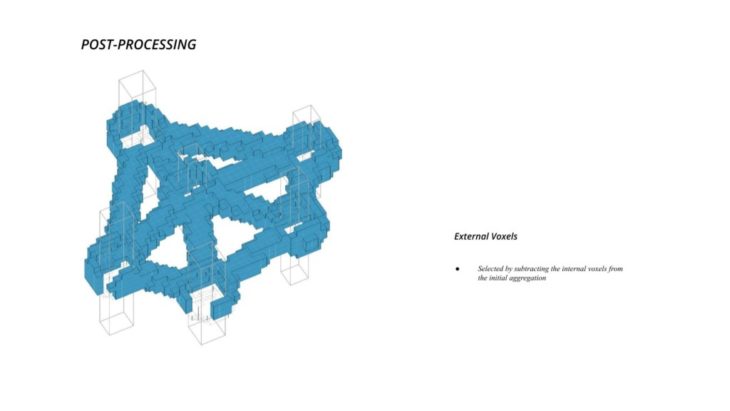

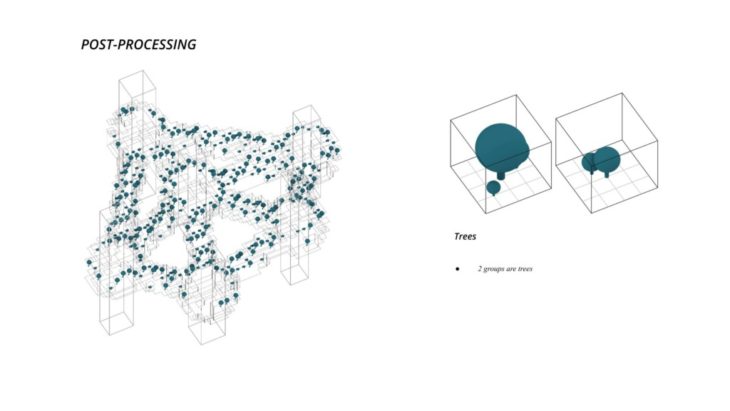

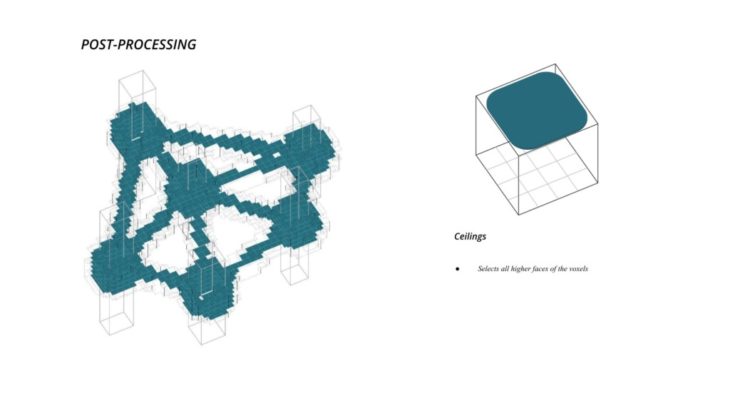

Post-processing

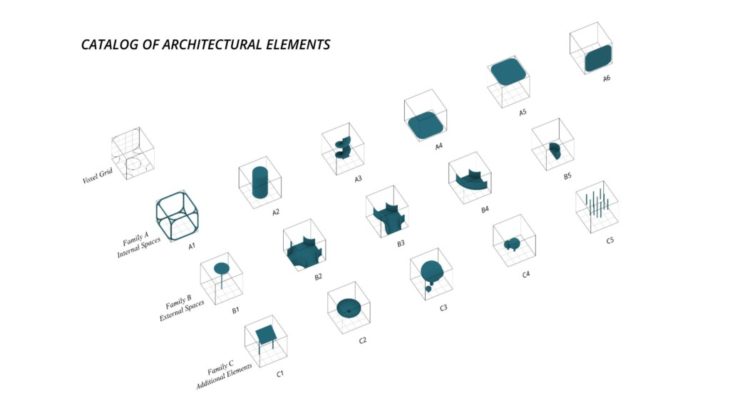

Architectural Elements
Pixel Gardens is a project of IAAC, Institute for Advanced Architecture of Catalonia developed in the Master in Advanced Architecture 2022/23 by students – Brian Paul Woodtli Bahena, Furio Magaraggia & Preetam Prabhakar and Faculty: Andrea Graziano and Eugenio Bettucchi
