GEOMETRY MANIPULATION

The idea was to create a 3d geometry on the surface of the sphare. Further the attraction point is induce and linked to the geomatry in a way that it changes its attribute and form a different geometry.

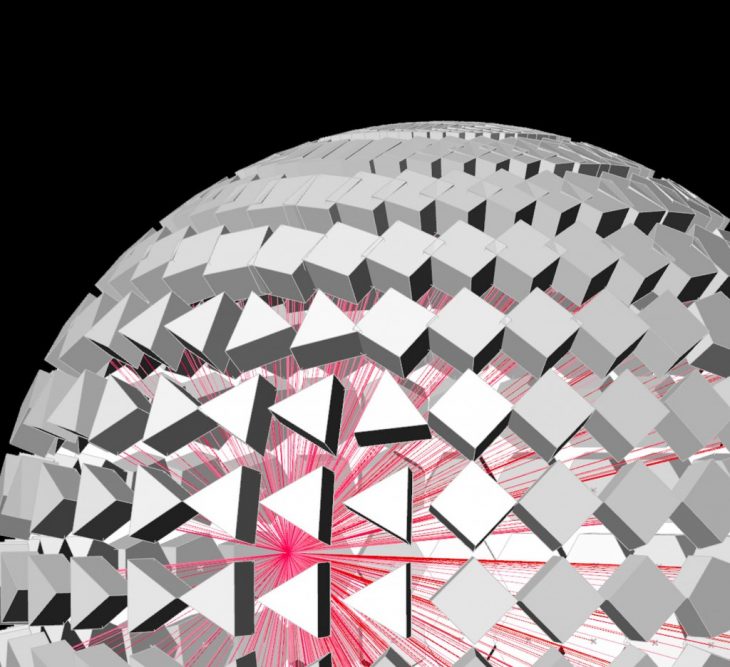

sharp-object-01

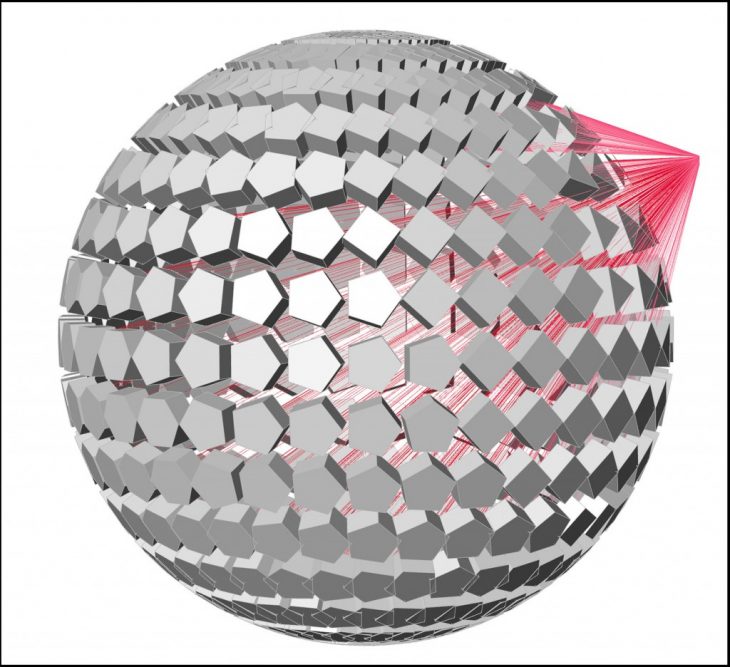

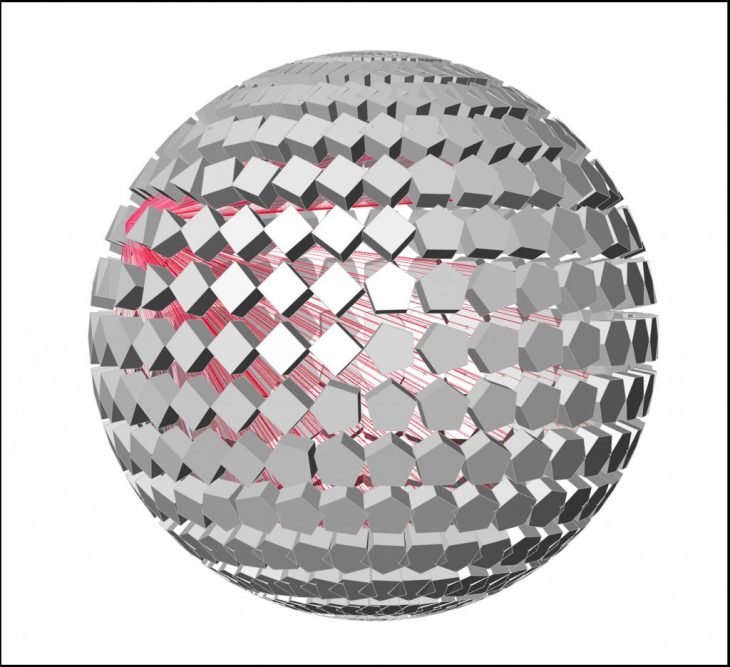

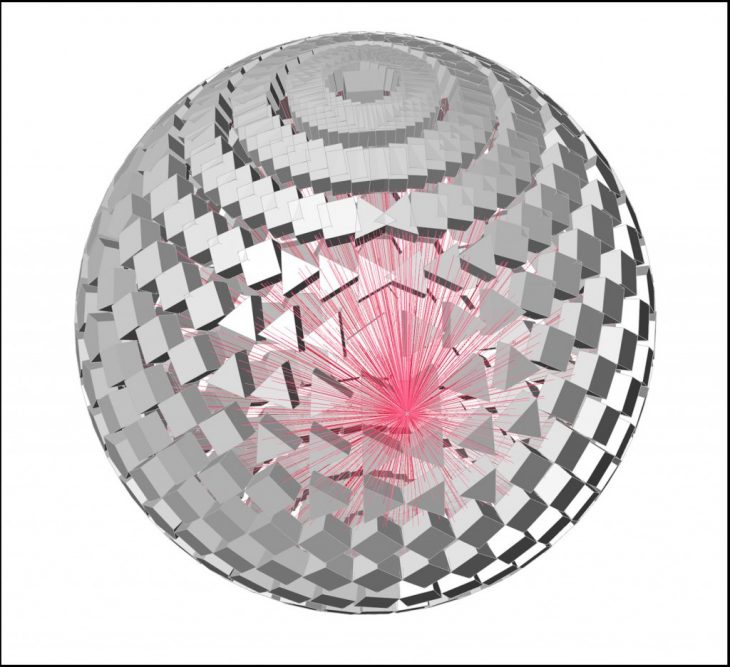

sharp-object-02 sharp-object-03 sharp-object-04

PROCESS

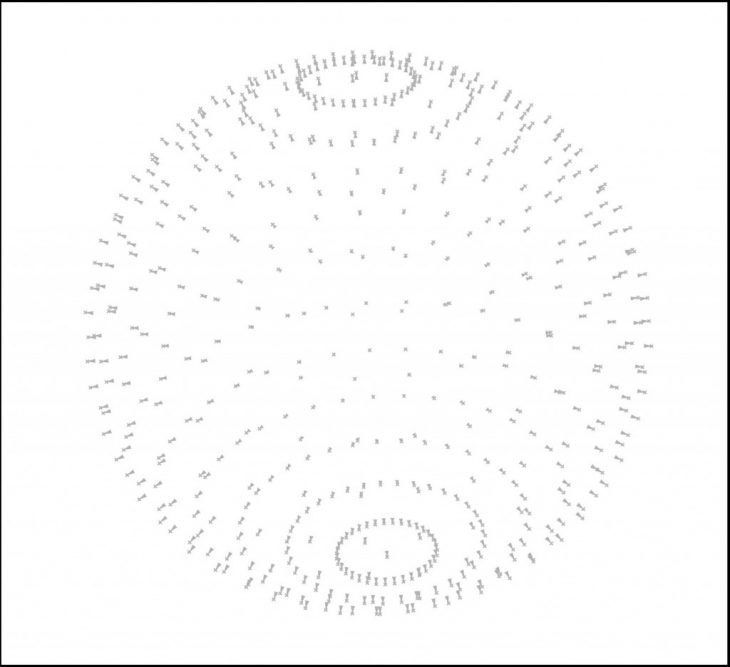

sharp-object-05 Sphare vertex define

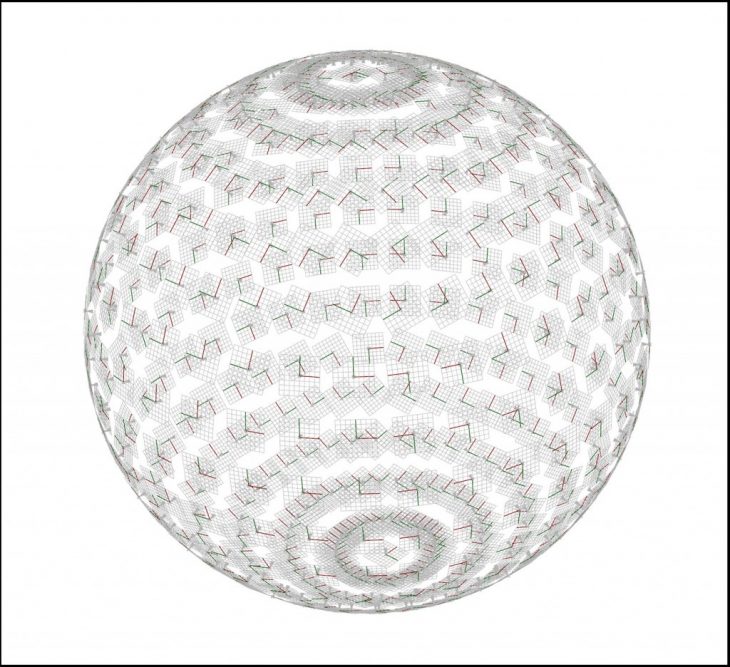

sharp-object-06 Plane created on outer surface normal to vertex

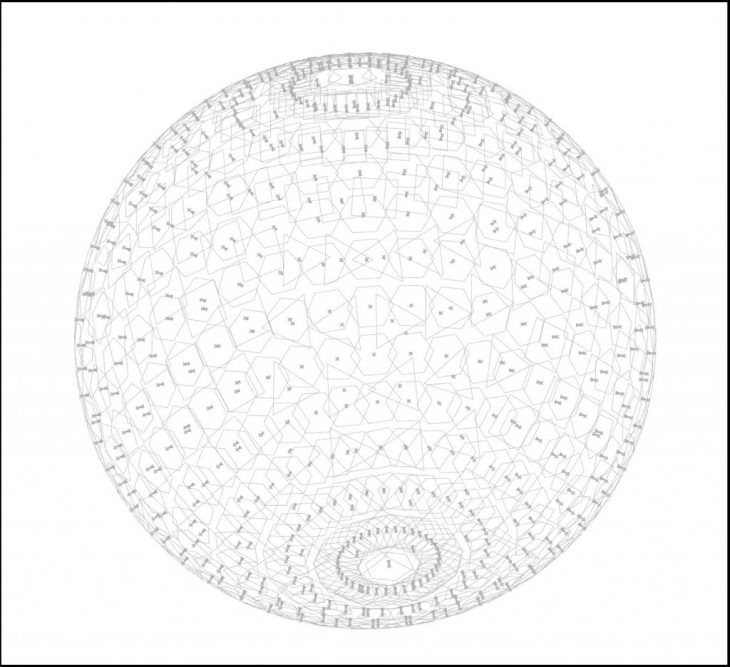

sharp-object-07 Polygoan genrated on the surface of sphare

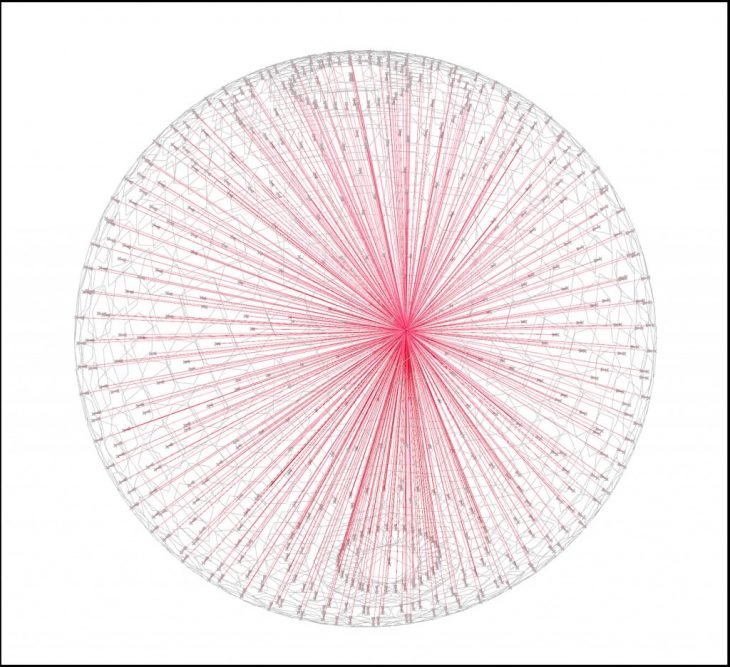

sharp-object-08 Attraction point define at random location

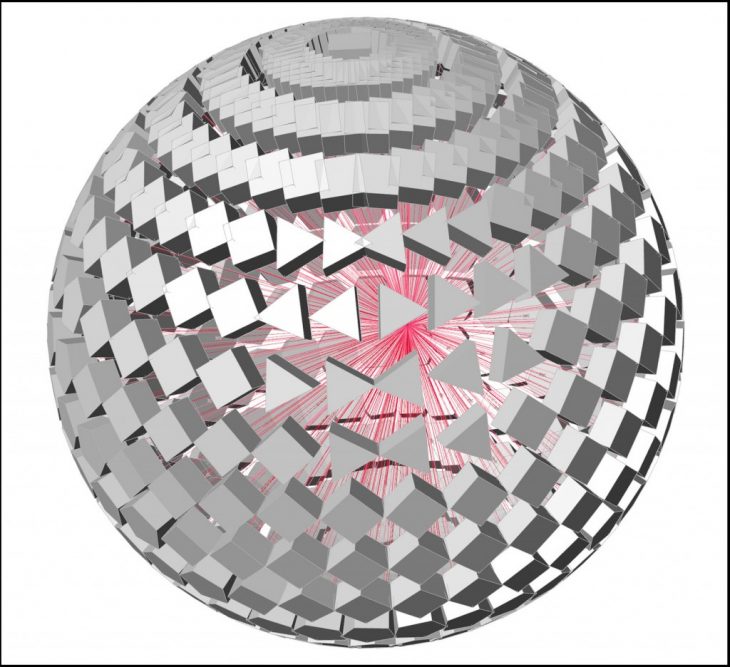

sharp-object-09 Geometry Changes as per the attraction point



gh-codeGrasshopper Script

SHARP OBJECT – Geometry Manipulation is a project of IaaC, Institute for Advanced Architecture of Catalonia, developed at Master in Advanced Architecture in 2016/2017 by:

Students: Mohammad Akram Khan

Tutors: Rodrigo Aguirre, Aldo Sollazo
