CONCEPT
This main objective of this assignment is to test if loud noises caught by a sound sensor trigger the movement of a DC motor.
The concept is to use a sound sensor in a loud environment (e.g. rooms with music playing), to detect the noise after a certain decibel to trigger the DC motor to drop Acoustic Barriers to buffer the sound or contain it within the space.
COMPONENTS USED
Arduino Uno Rev3 x 1
Breadboard x 1
USB 2.0 Cable Type A/B x 1
Grove Sound Sensor v1.6 x 1
Breadboard Jumper Wire x 13
Resistor x 1
Diode x 1
Transistor x 1
DC Motor x 1

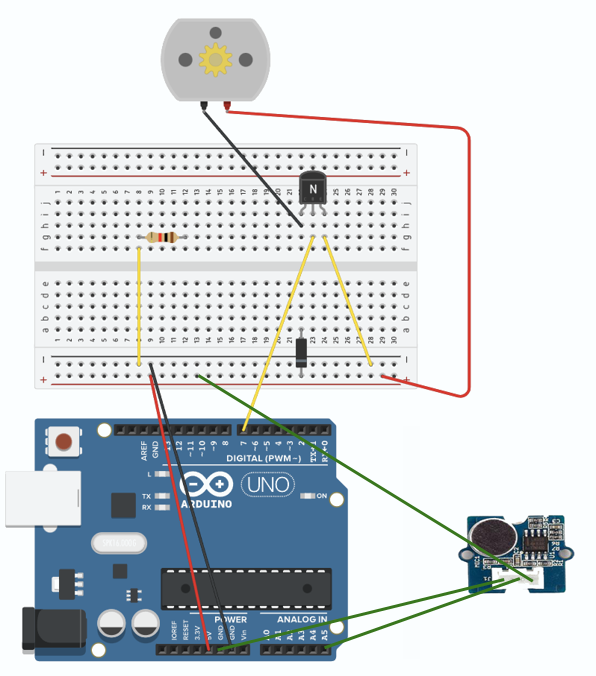

SCHEMATIC DIAGRAM OF THE CIRCUIT

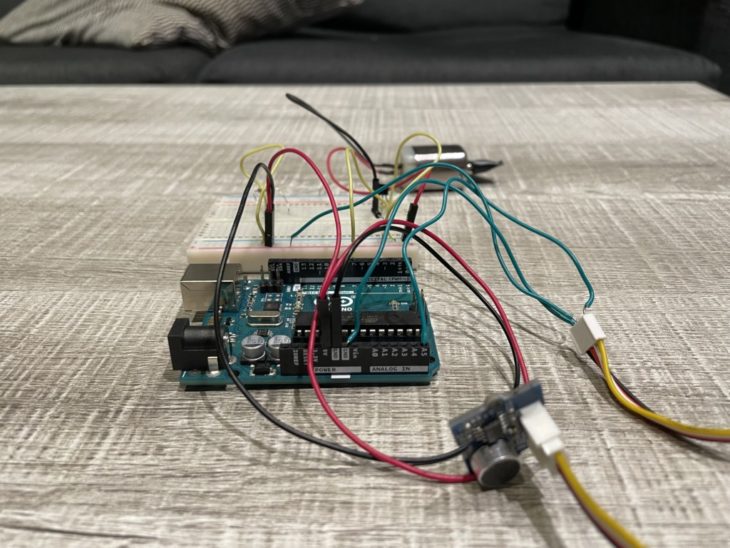

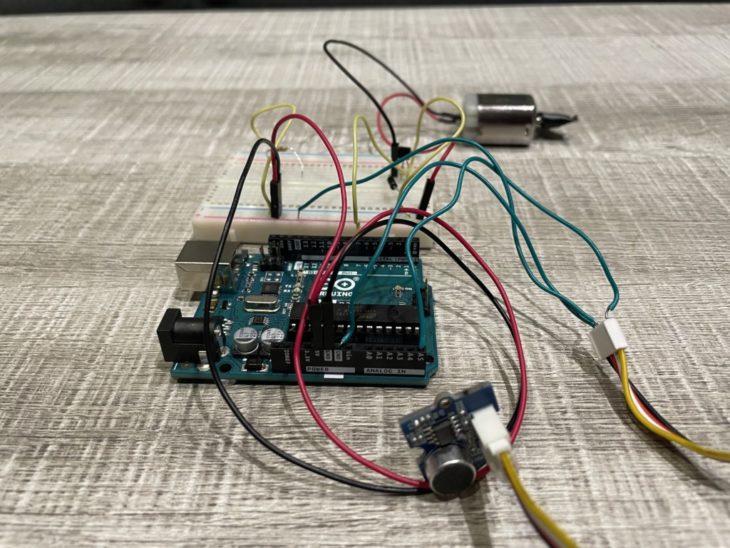

CIRCUIT

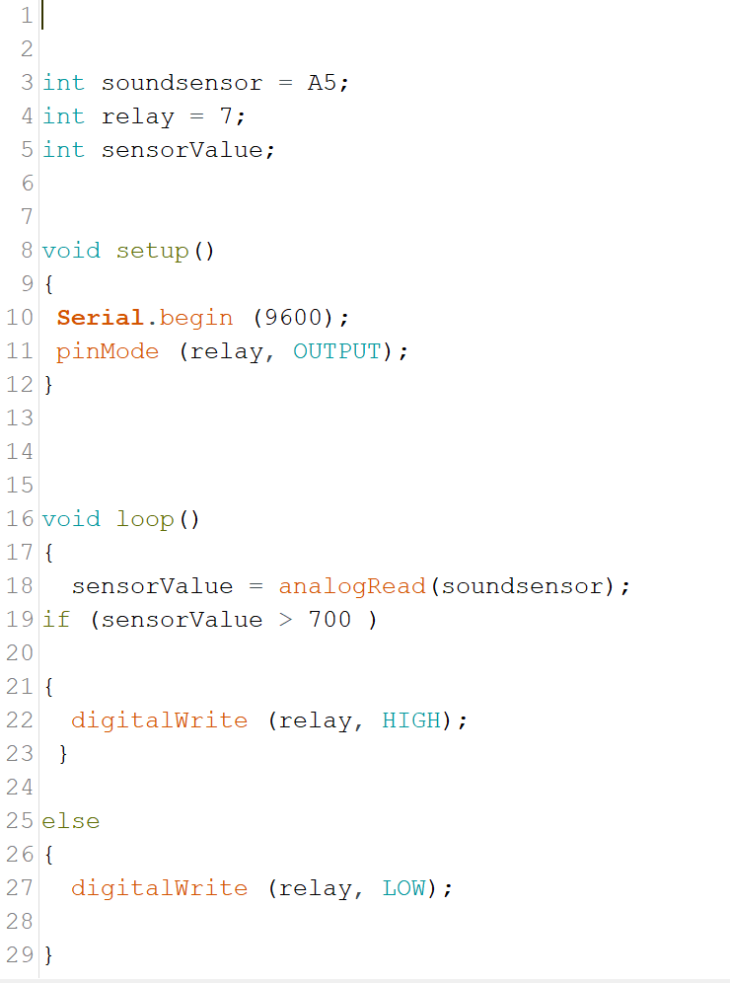

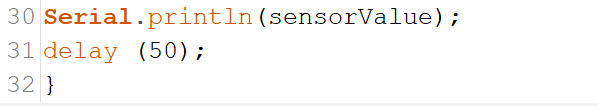

PSEUDO CODE
</p>
Sound Proof is a project of IAAC, Institute for Advanced Architecture of Catalonia, developed at Masters in Advanced Architecture in 2021/2022.
Student: Tanvee Suhas Joshi
Faculty: Angelo Muñoz, Cristian Rizzuti, Bernat Morato
Course : Introduction to Programming and Physical Computing
