Syddansk Universitet en Kolding (Kolding, Denmark) 2014 Henning Larsen Architects

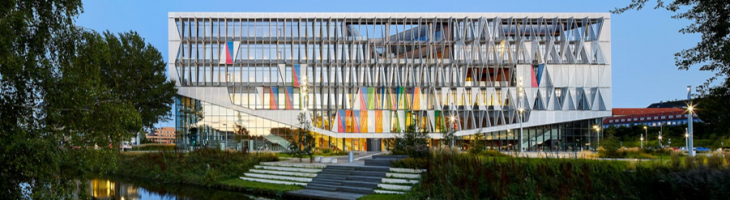

SDU Campus Kolding is the first university building in Denmark to fulfill the strong demands for energy consumption described in the building regulations 2015. The energy consumption is 36 kWh/m2/year. The sustainable strategy has been integrated in the architectural design.

Syddansk Universitet en Kolding (Kolding, Denmark) 2014 Henning Larsen Architects

Syddansk Universitet en Kolding

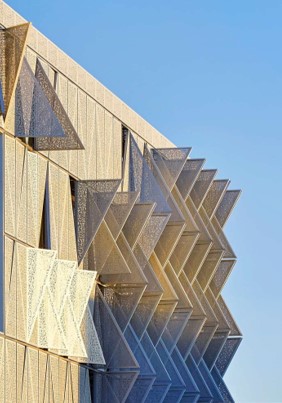

 Featuring a climate-responsive kinetic facade system, this system adjusts to the specific climate conditions and user patterns and provides optimal daylight and a comfortable indoor climate for spaces along the facade.

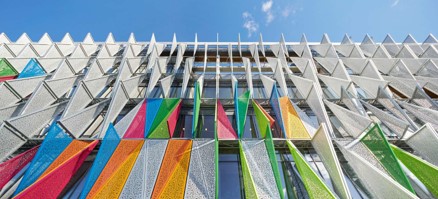

The climate-responsive kinetic facade system consists of 1600 triangular shutters of perforated steel. The perforation on shutters is a light, organic pattern of round holes, which provides a distinctive play of light.

In the evening, the light from the inside will pour through the perforated pattern and make the facade appear more transparent.

The solar shading system is fitted with sensors that continuously measure light and heat levels and regulate the shutters mechanically by means of a small motor.

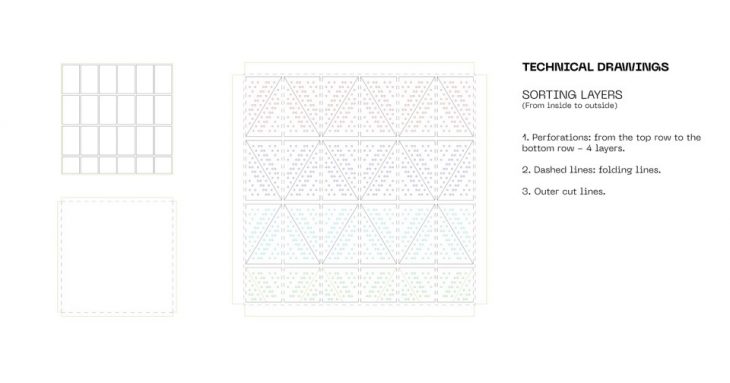

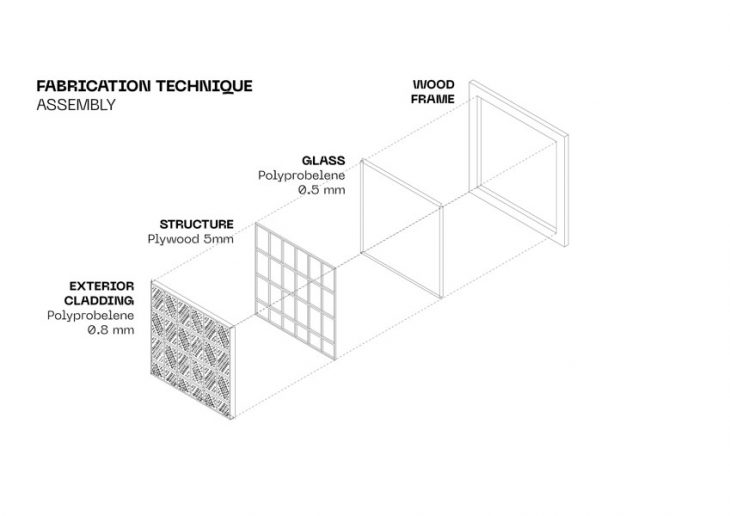

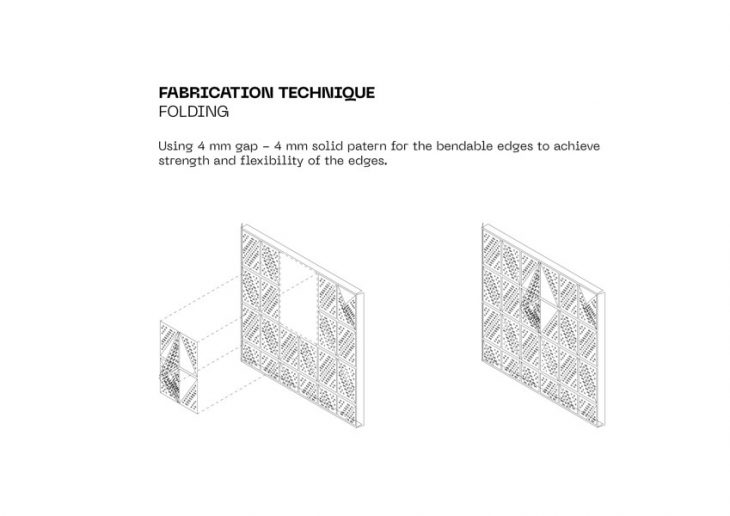

Laser cut model Technique of Syddansk Universitet en Kolding

Laser cut model Technique of Syddansk Universitet en Kolding

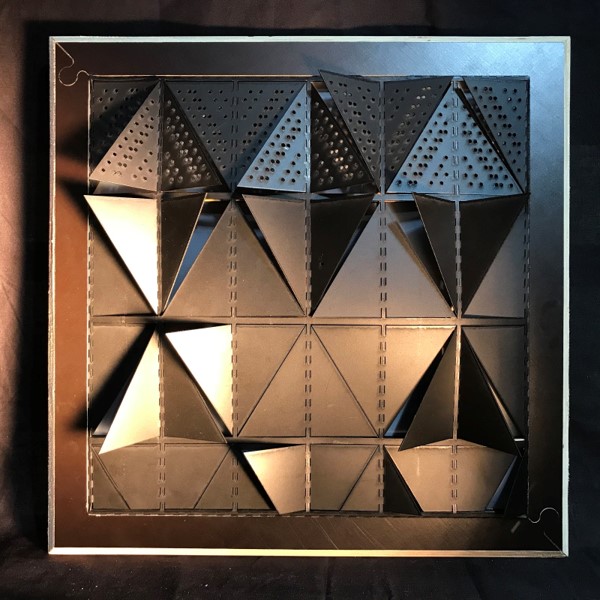

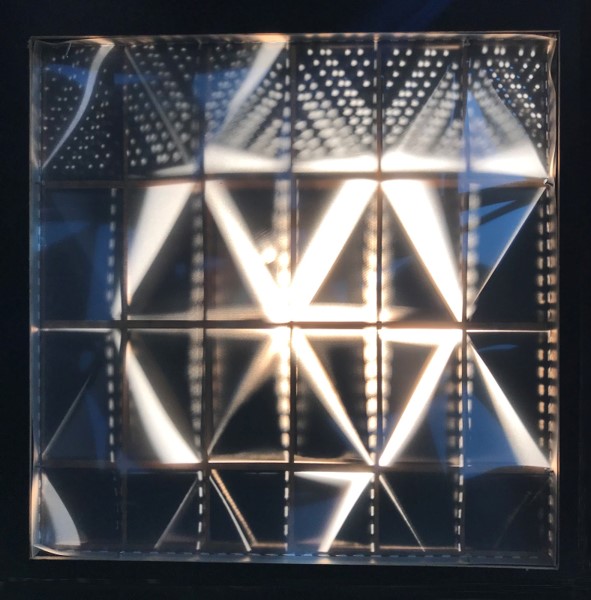

laser cut model of Syddansk Universitet en Kolding (Kolding,

laser cut model of Syddansk Universitet en Kolding (Kolding,

Digital Fabrication (Laser cutting) technique on Syddansk Universitet en Kolding (Kolding, Denmark) 2014, Henning Larsen Architects is a project of IAAC, Institute for Advanced Architecture of Catalonia developed at Master in Advanced Architecture in 2020/21 by students: Kajal Unahariya, Christos Trompoukis, Ziyad Wassef Abdelkader Youssef Ahmed, and faculty: Ricardo Mayor Luque, Lana Awad & Shyam Zonca
