The Radicant Machine: a thermodynamic architecture proposed for Barcelona’s historically industrial Sant Adrià de Besòs  neighborhood. Designed to subvert the conventional practice of mitigating environmental variations with respect to time and orientation, the structure instead intentionally augments naturally occurring climatic disparities, thus generating extreme differentials in temperature, humidity and air pressure. By harnessing the full force of the coastal mediterranean sun and wind as potential energy, circulatory flows are passively powered which condition and ventilate the interior volume.

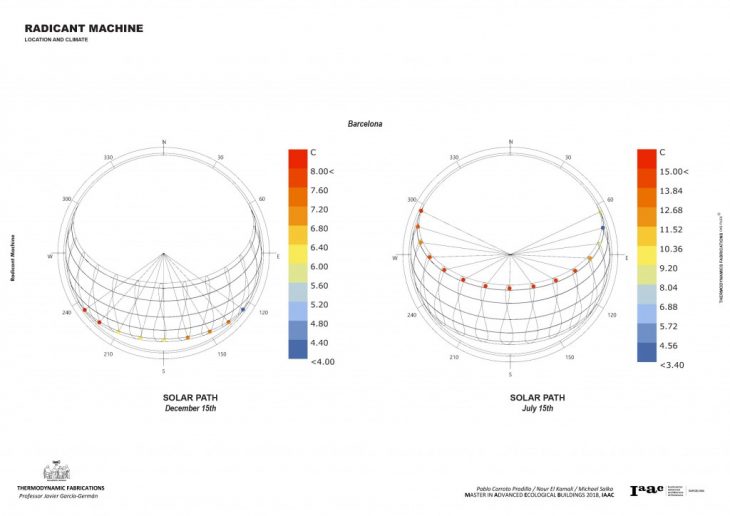

Site-Specific Solar Vectors Generated Using Ladybug

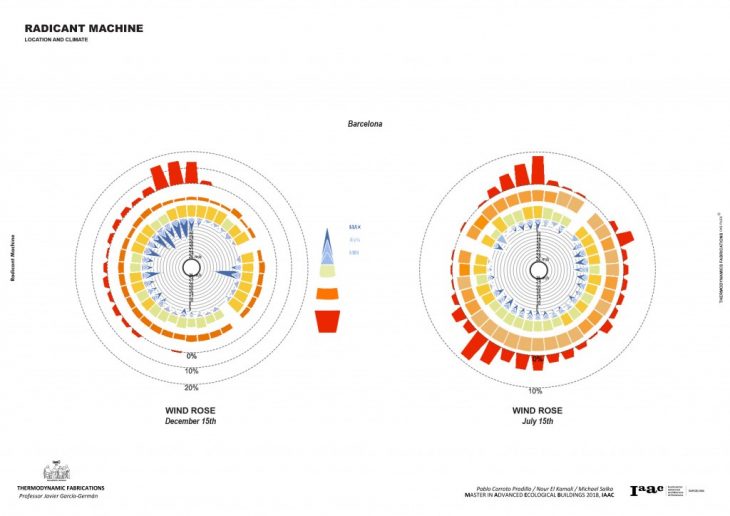

Site-Specific Wind Roses Generated Using Climate Consultant

Site-Specific Psychrometric Charts Generated Using Climate Consultant

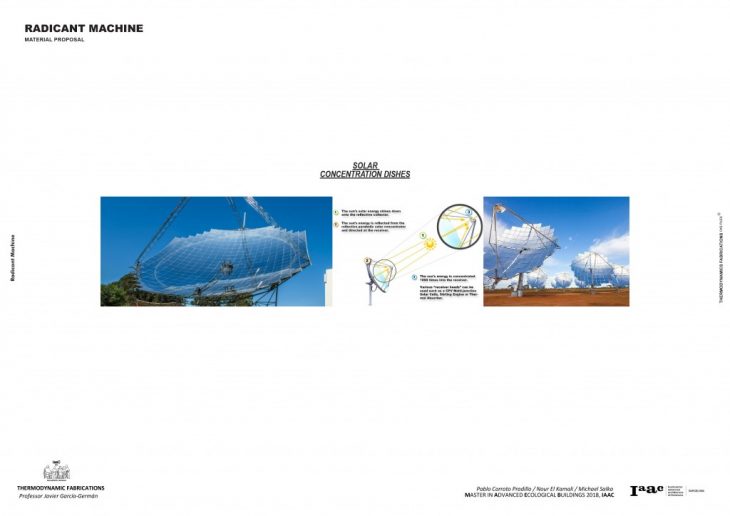

Industrial Case Study Optimized for Solar Radiation

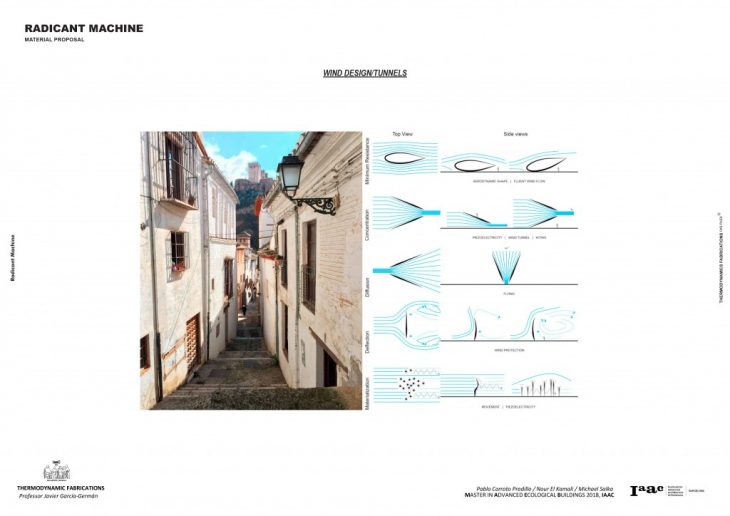

Regional Vernacular Case Studies Optimized for Wind

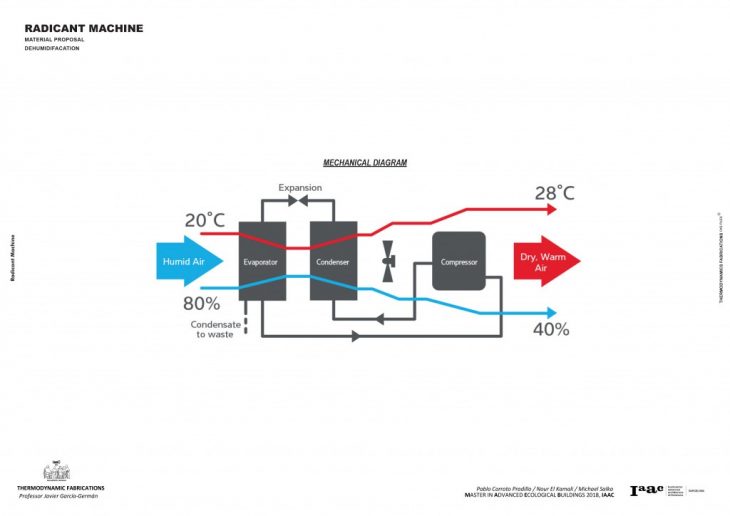

Mechanical Case Study Optimized for Dehumidification

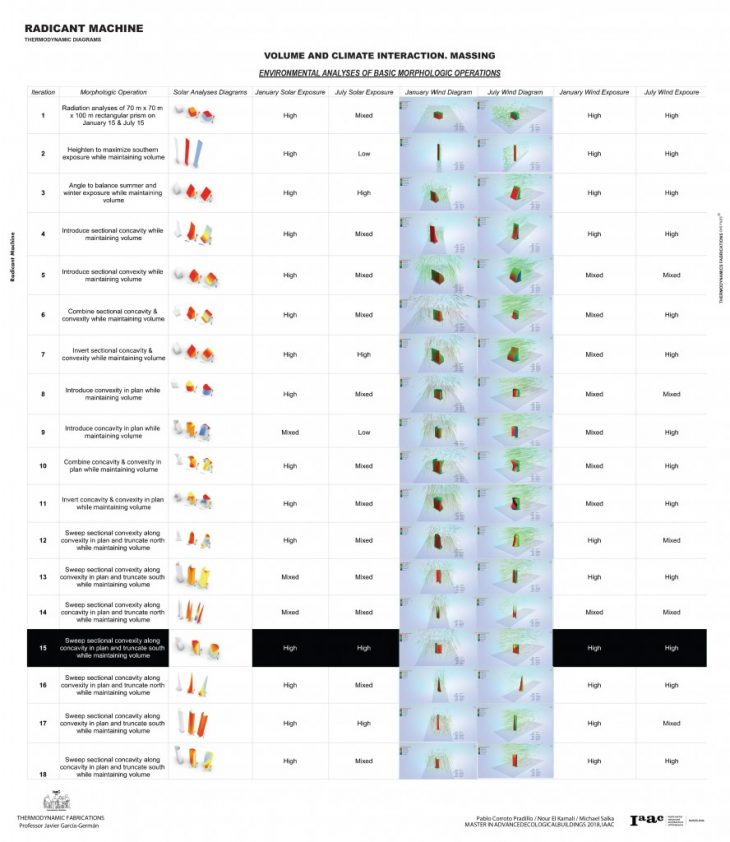

Morphological Iterations Evaluated For Climatic Performance Using Ladybug + Autodesk Flow

Morphological Sequence Evaluated for Solar Radiation Using Ladybug

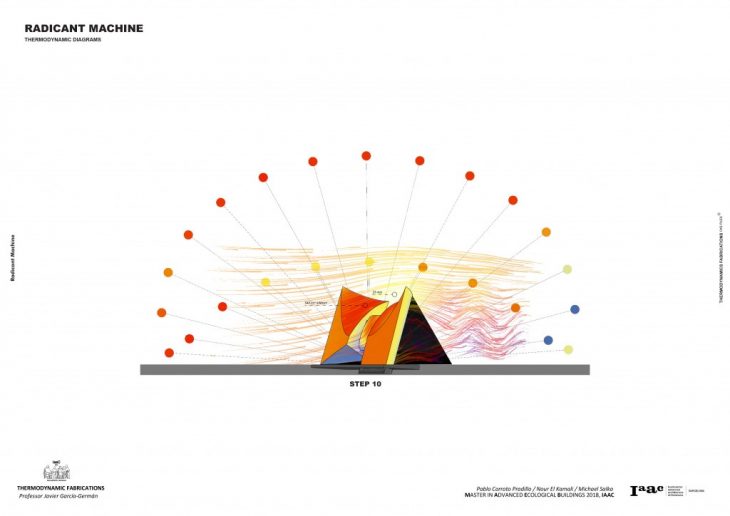

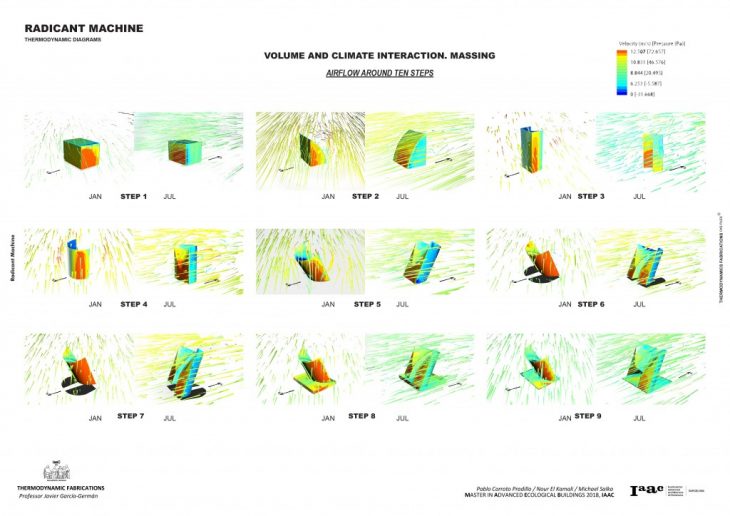

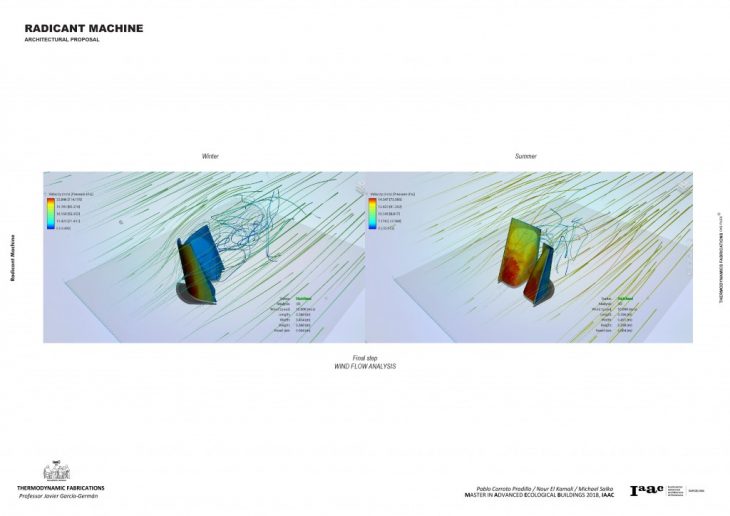

Morphological Sequence Evaluated for Wind Velocity & Pressure Using Autodesk Flow

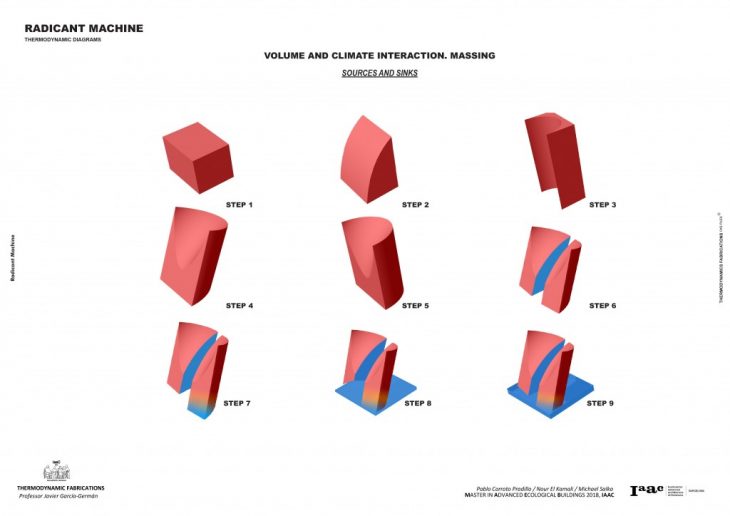

Morphological Sequence Evaluated for Thermal Sources & Sinks

Final Conceptual Massing Evaluated for Solar Radiation, Wind Velocty & Wind Pressure Using Ladybug + Autodesk Flow

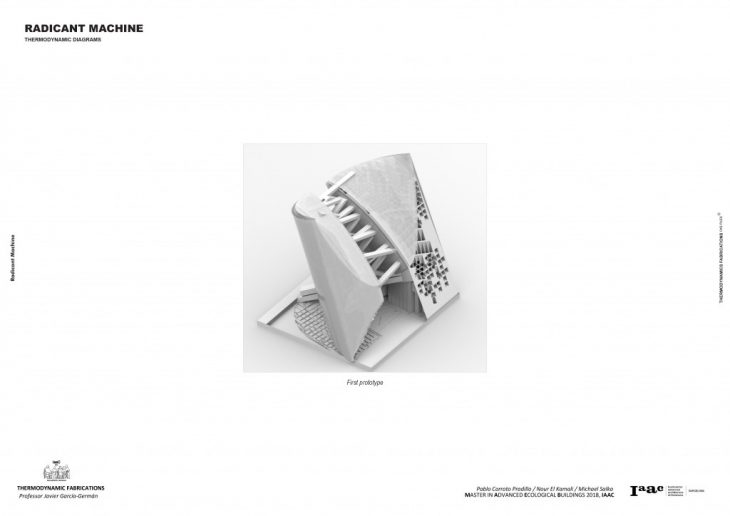

Preliminary Architectural Prototype

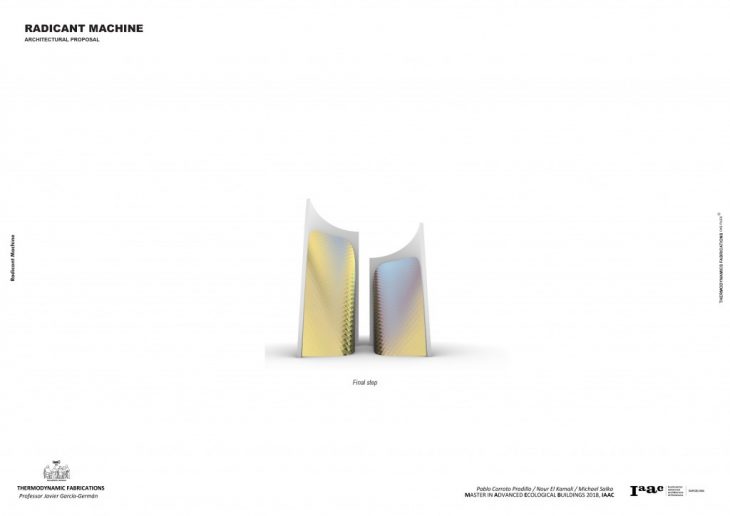

Preliminary Architectural Prototype Rationalized into Final Form

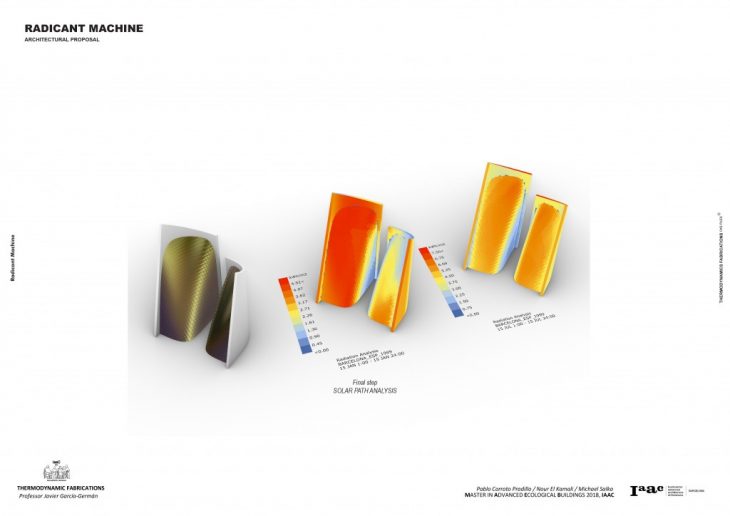

Final Form for Solar Radiation Using Ladybug

Final Form Evaluated for Wind Velocity & Pressure Using Autodesk Flow

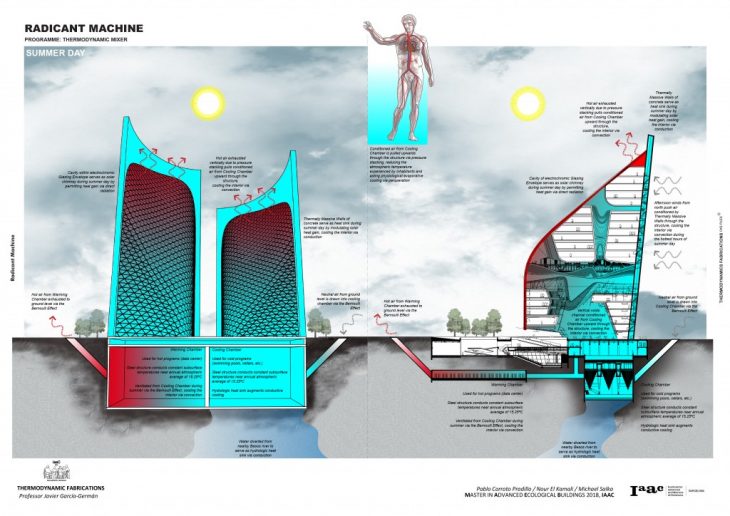

Thermodynamic Performance During Summer Day

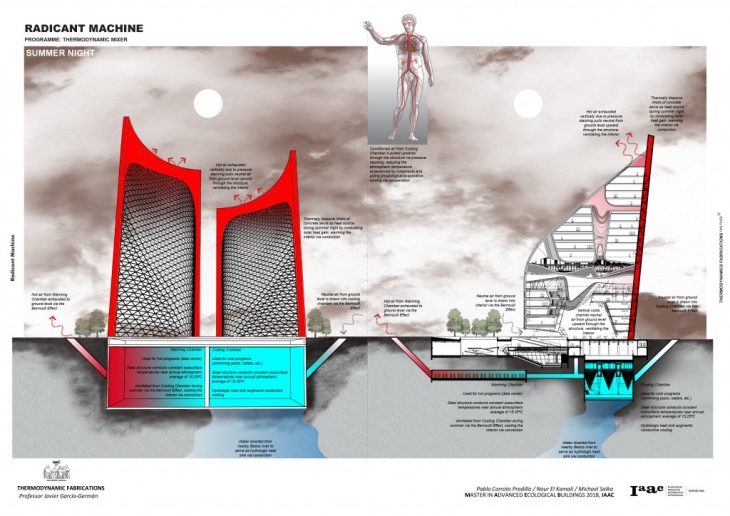

Thermodynamic Performance During Summer Night

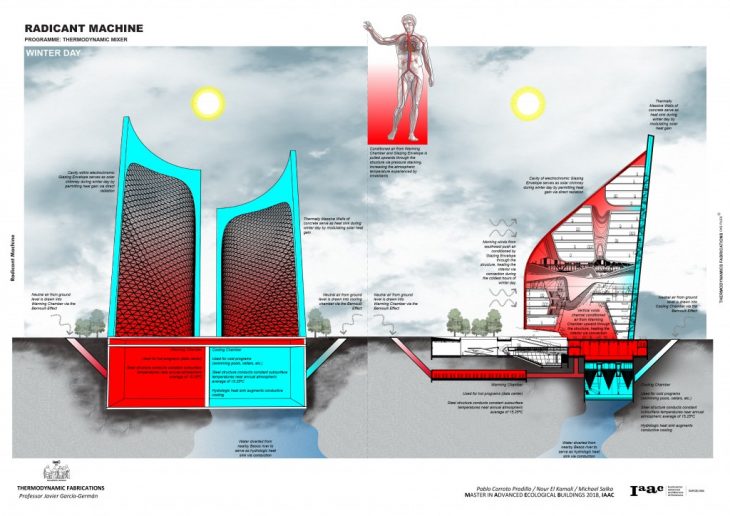

Thermodynamic Performance During Winter Day

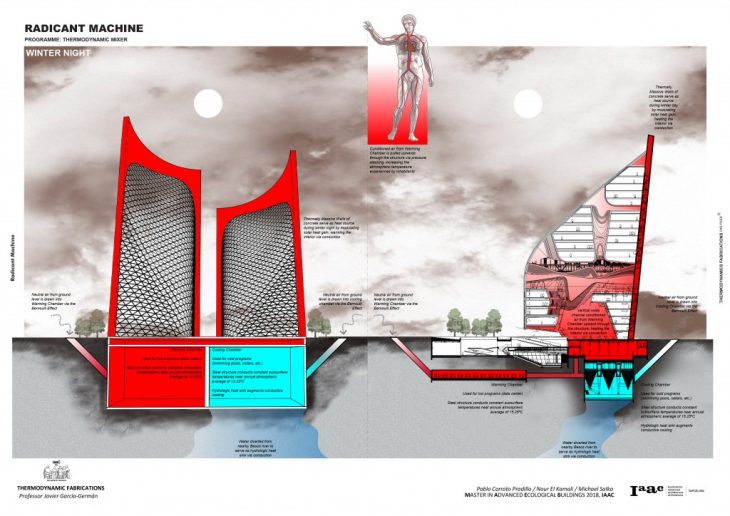

Thermodynamic Performance During Winter Night

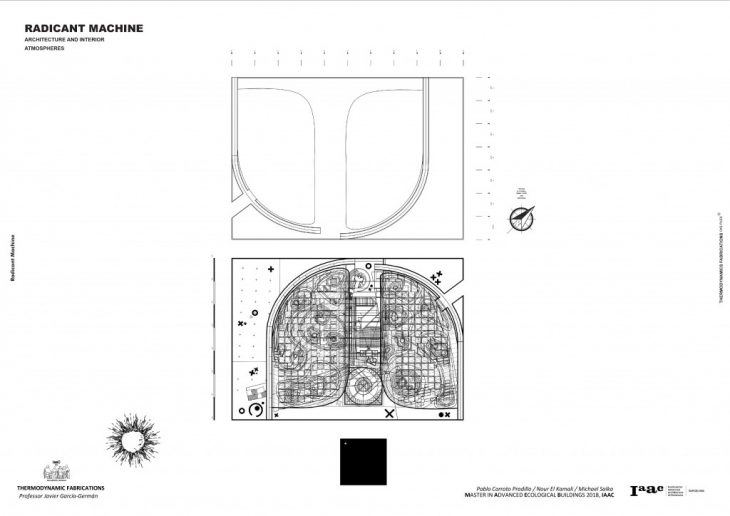

Building Plan

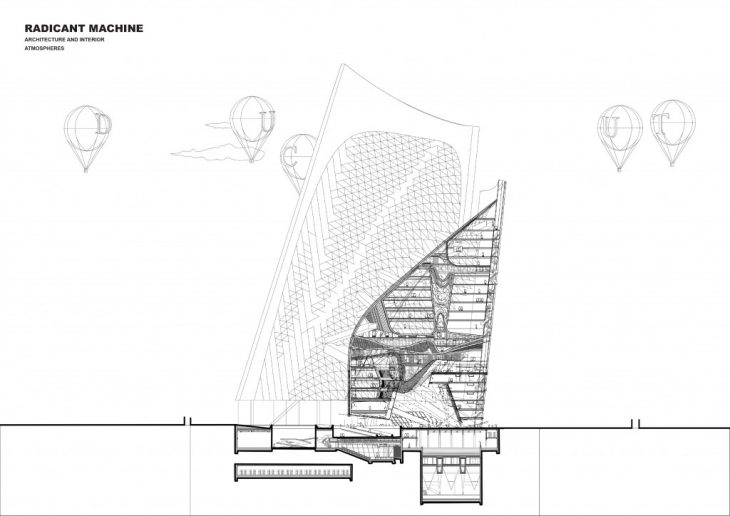

Building Section

Hydrophobic & Hydrophilic Materiality Research Regarding Humidity Extraction

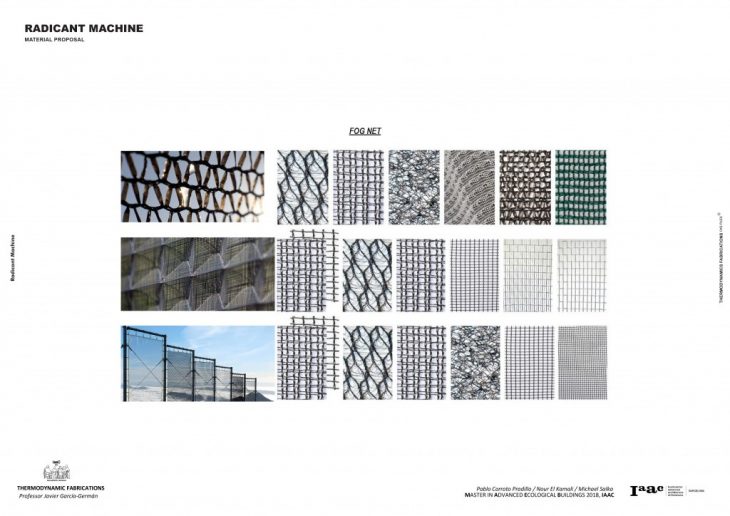

Net Materiality Research Regarding Humidity Extraction

Conceptual Materiality Proposal



Exterior Rendering

Interior Rendering 1

Interior Rendering 2

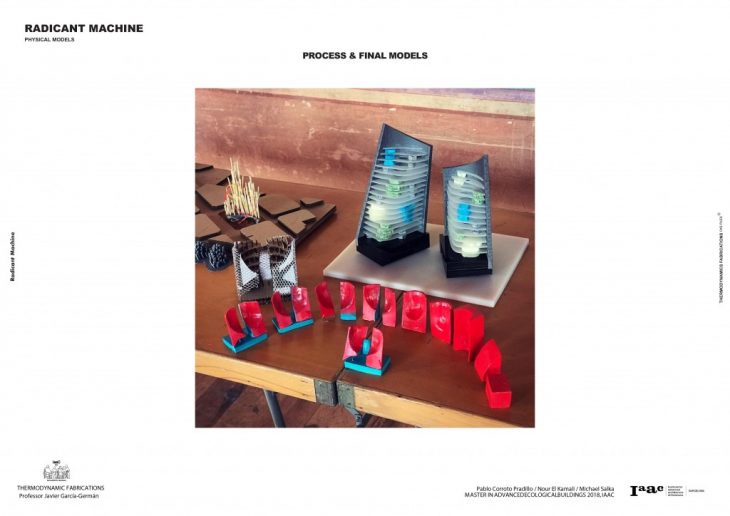

Process & Final Physical Models

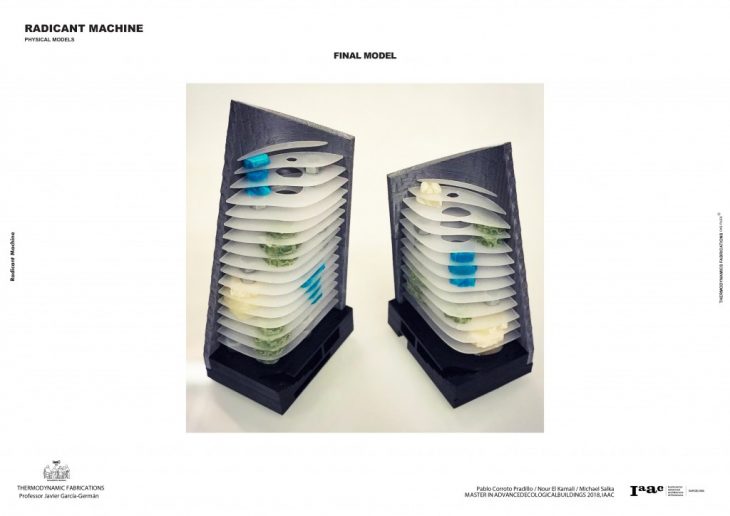

Final Physical Model






The Radicant Machine is a project of IaaC, Institute for Advanced Architecture of Catalonia developed at the Master of Advanced Ecological Buildings in 2018 by:
Students: Nour El Kamali, Pablo Corrotto Pradillo & Michael Salka
Faculty: Javier García-Germán
